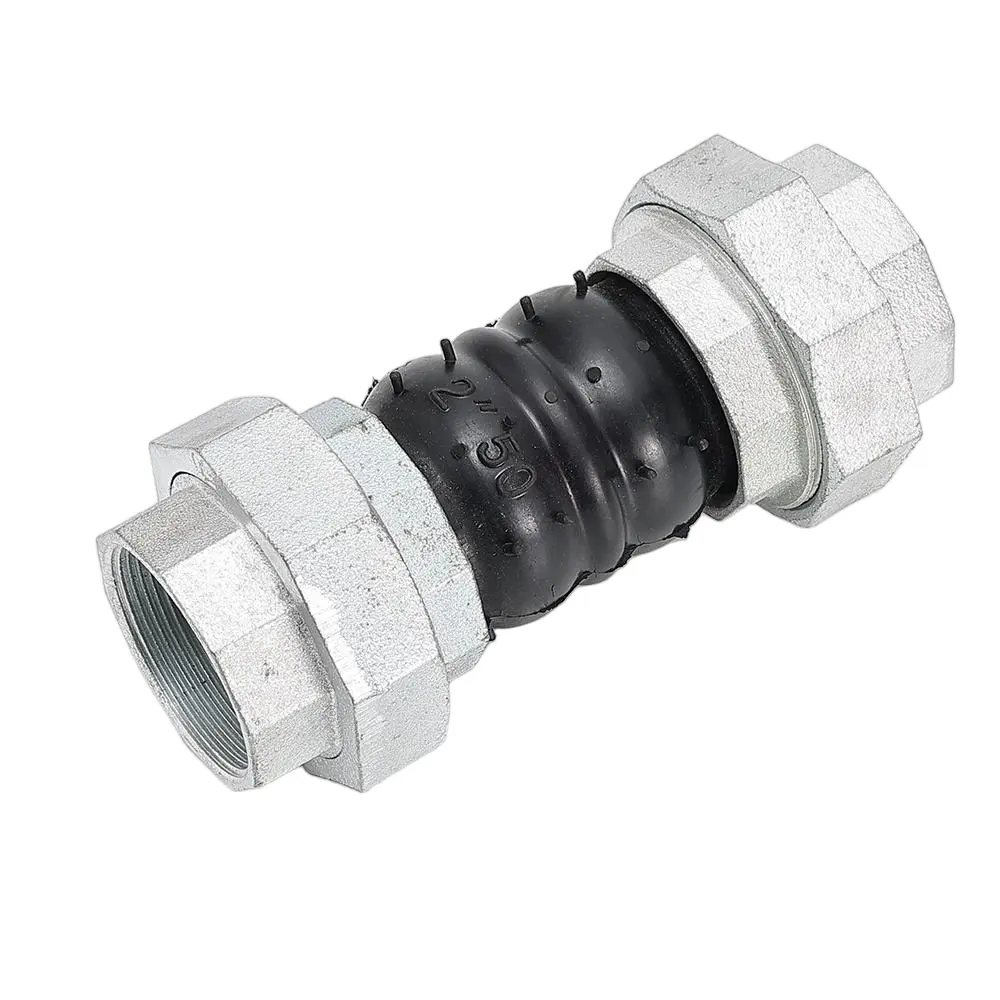

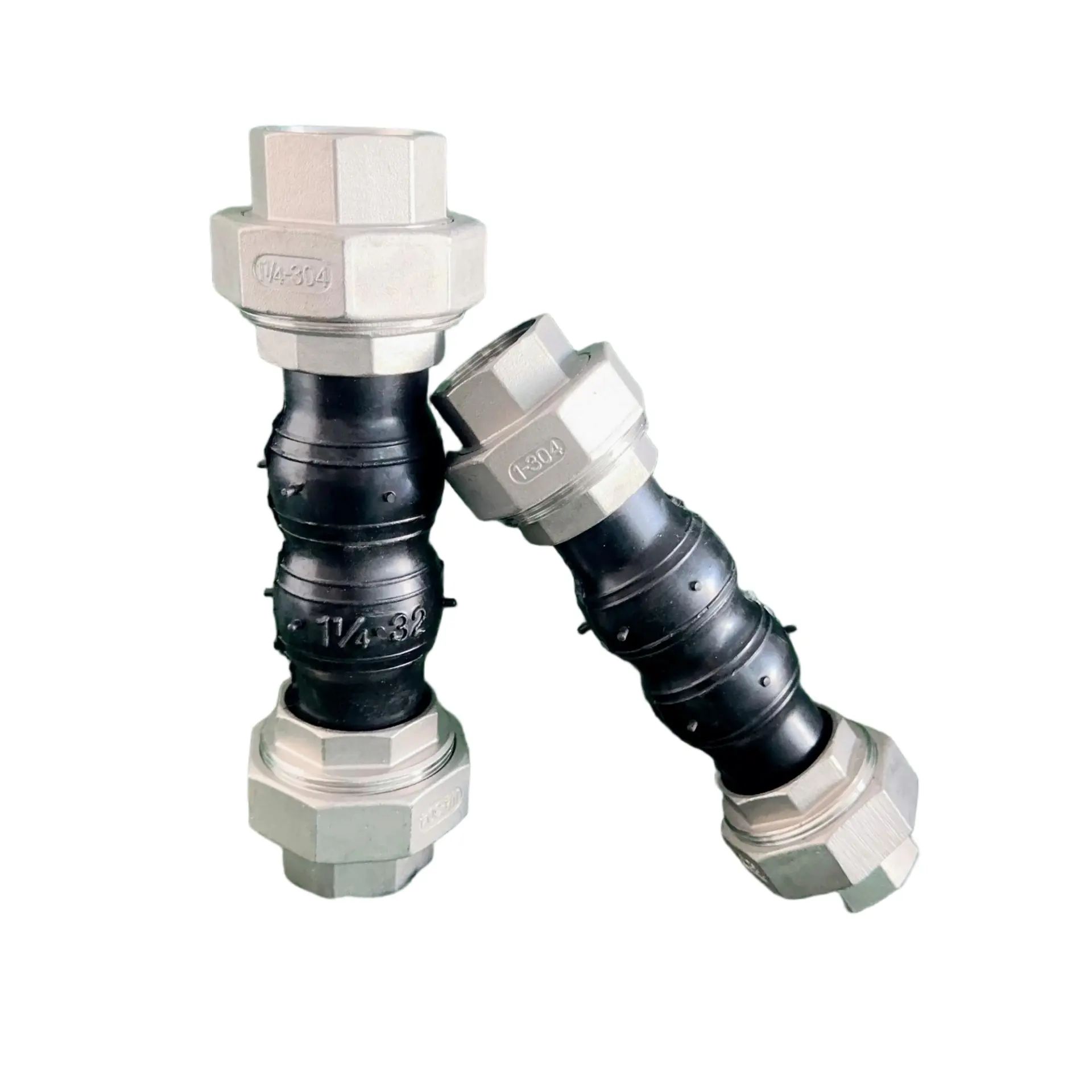

Threaded Rubber Flexible Joint (Rubber Expansion Joint) for Vibration Isolation & Pipe Stress Relief | DELCO

DELCO Threaded Rubber Flexible Joint is a rubber expansion joint for threaded piping. It reduces vibration and noise, and helps relieve pipe stress from thermal movement and minor misalignment. Union-type threaded ends enable fast installation and replacement. Rubber compound, thread standard/size, and pressure rating can be supplied to suit water, HVAC, and general industrial service.

Get Free Quote

Features

Designed to absorb vibration and compensate small movements, improving piping reliability in compact threaded installations.

✅Vibration & Noise Isolation: Rubber body dampens pump and equipment vibration, helping protect valves, meters, and piping supports.

✅Movement Compensation: Supports compensation of minor axial/lateral/angle movements to reduce stress from thermal expansion and installation misalignment.

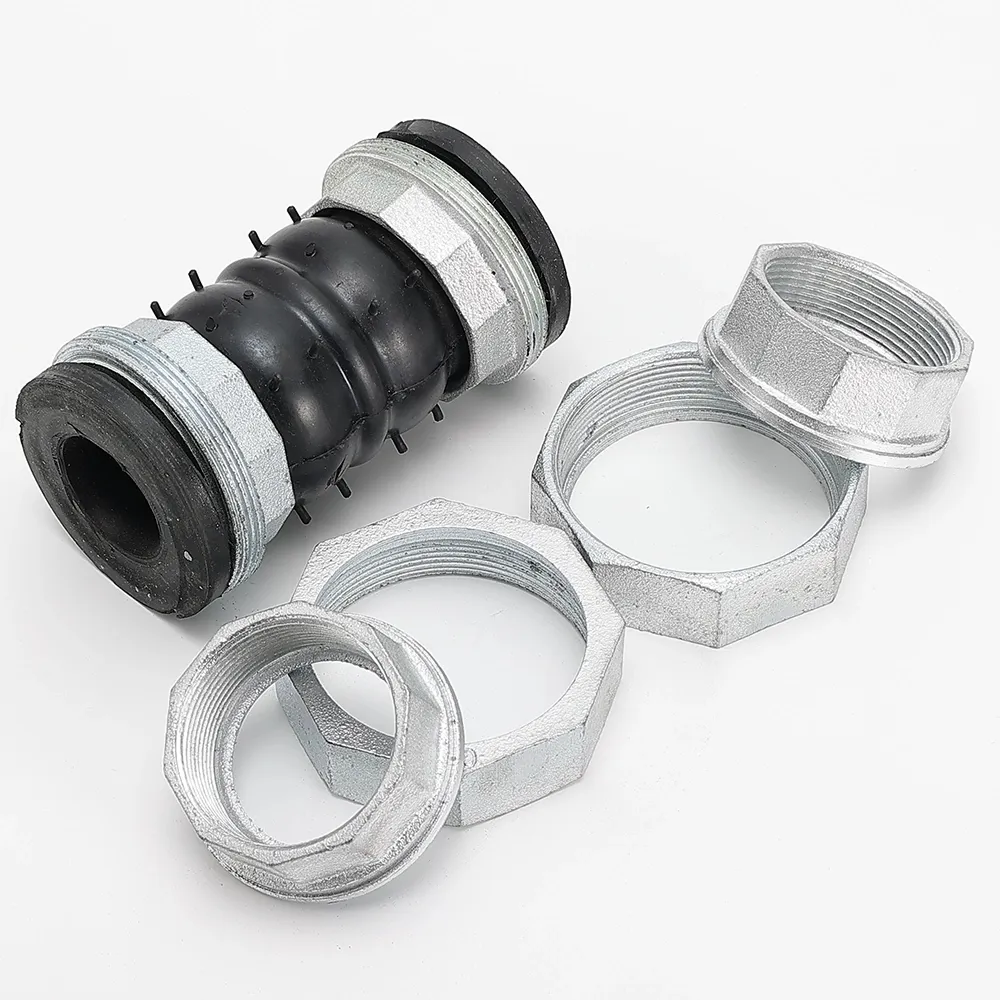

✅Union Threaded Ends: Union-style threaded connections enable quick installation, removal, and replacement with minimal downtime.

✅Material Options for Media: Rubber compound and metal end materials can be selected for water, mild chemicals, and other service conditions.

✅Compact Retrofit Solution: Ideal for tight spaces and retrofit projects where flanged joints are inconvenient.


EN 1092-1 PN16 Plate Flange Dimensions

Dimensions

DN	NPS	D (mm) Outside Diameter	b (mm) Thickness	k (mm) Bolt Circle Dia.	n × d (mm) Bolt Holes	d2 (mm) Bore	Weight (kg) SS304
50	2″	165	18	125	4 × 18	50.0	1.2
65	2½”	185	18	145	4 × 18	65.2	1.5
80	3″	200	18	160	8 × 18	80.5	1.8
100	4″	220	20	180	8 × 18	103.0	2.3
125	5″	250	22	210	8 × 18	129.0	3.1
150	6″	285	22	240	8 × 22	154.0	4.0
200	8″	340	22	295	12 × 22	203.0	6.2
250	10″	405	24	355	12 × 22	254.0	9.5
300	12″	460	24	410	16 × 22	303.5	12.8
350	14″	520	26	470	16 × 22	356.0	18.2
400	16″	580	26	525	16 × 26	406.0	23.5
