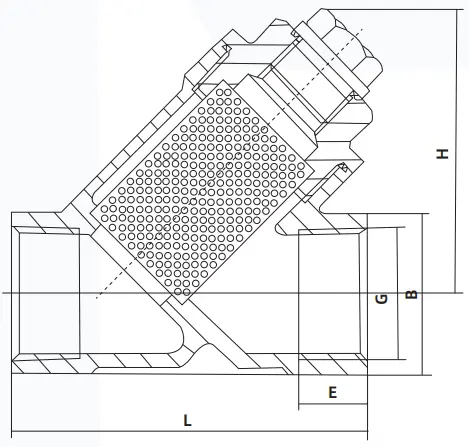

SY11 Y-Strainer for Pipeline Protection and Particle Filtration

✅ Essential Equipment Protection: The primary function of the Y-Strainer is to filter out solid particles, rust, sand, and other mechanical impurities present in the medium. This process is vital for protecting sensitive and expensive equipment downstream, such as control valves, pumps, and flow meters, from damage and premature failure.

✅ High Working Pressure Range: Built to accommodate demanding industrial systems, the Y-Strainer is available across a wide pressure spectrum, ranging from PN1.6 up to PN6.4 (1.6 MPa to 6.4 MPa), ensuring structural integrity under high operating loads.

✅ Corrosion-Resistant Material Options: The strainer is offered in three main material specifications: SY11-C (WCB) for general fluids (water, oil, gas), SY11-P (CF8 / SS 304 equivalent) for nitric acid, and SY11-R (CF8M / SS 316 equivalent) for acetic acid and more aggressive media. The mesh itself is available in 304 or 316 Stainless Steel.

✅ Simple and Quick Maintenance: The ‘Y’ configuration allows for easy access to the filter element (cartridge). When cleaning is required, the filter cover (bonnet) can be quickly removed to take out and clean the removable cartridge before re-installation, minimizing process downtime.

✅ Broad Temperature Applicability: The standard WCB strainer is rated for temperatures from -29 ℃ up to 180 ℃, making it suitable for both cold and high-temperature industrial processes.
