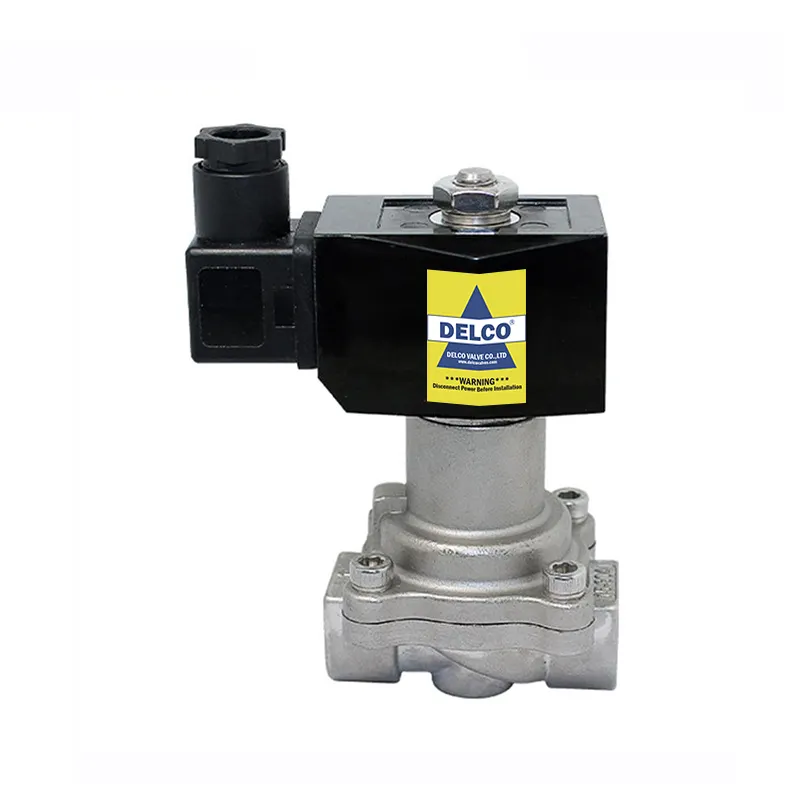

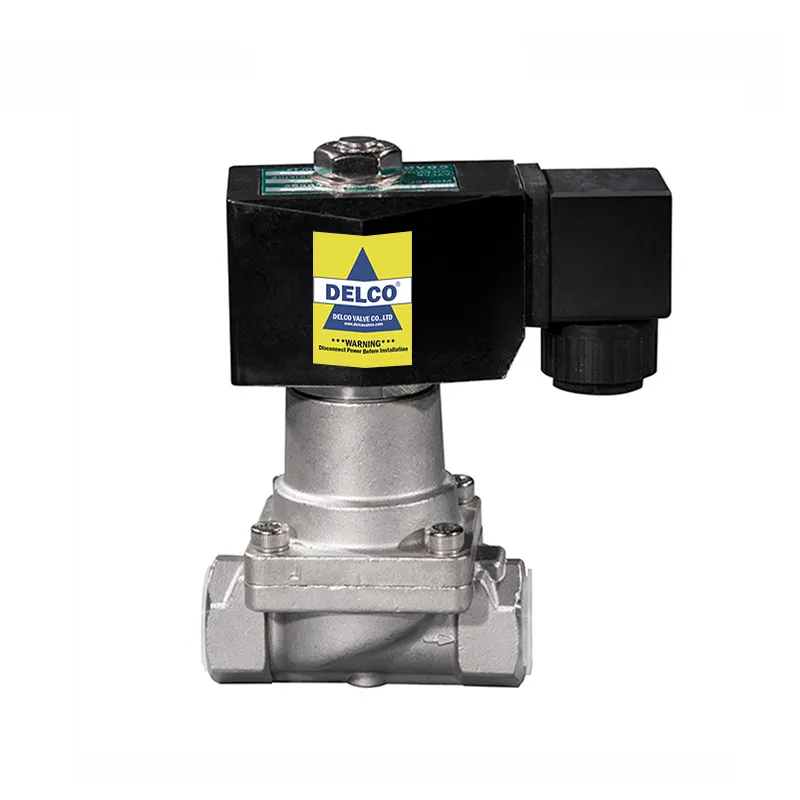

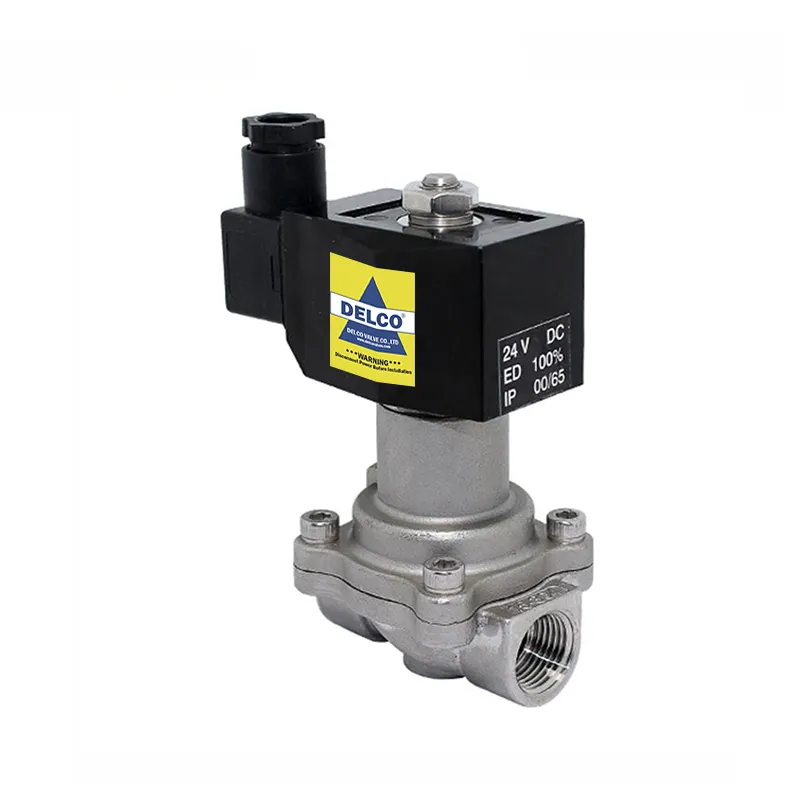

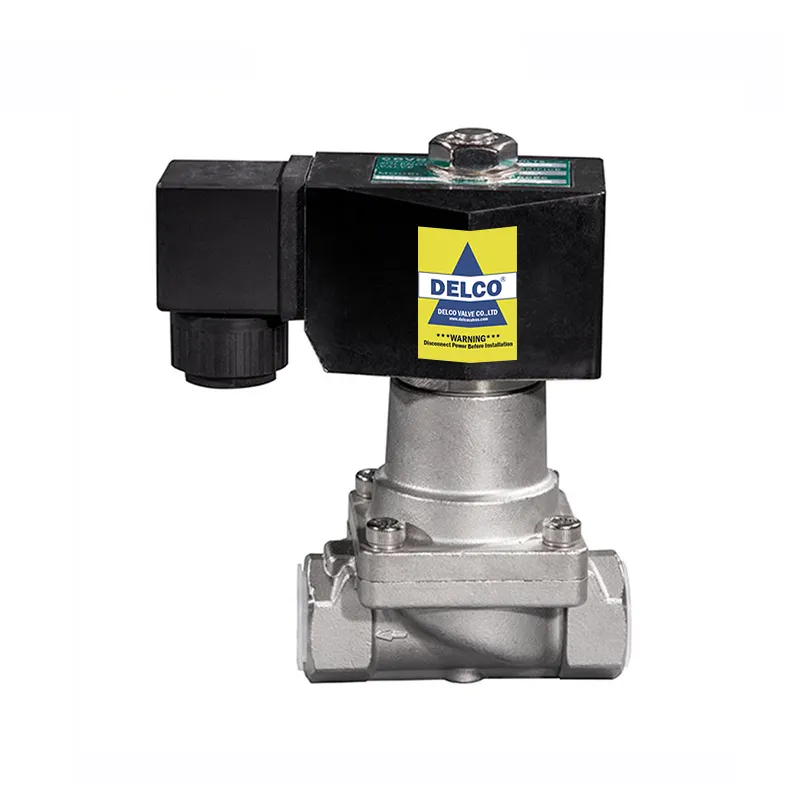

SS Piston Type Solenoid Valve DN15-DN50 180°C | DELCO

SS piston type solenoid valve for 180°C high-temperature steam. DN15-DN50, 0.3-16 Bar. Heavy-duty piston design ensures superior lifespan in thermal systems.

Size Range: DN15-DN50

Pressure Range: 0.3-16 Bar Max Temperature: 180℃

Voltage: AC/DC 12V/24V110V/220V

Get Free Quote

Key Features

Replacing standard diaphragms with a rugged stainless steel piston, this high-temperature solenoid valve delivers ultimate durability and leak-free performance in demanding 180°C steam and thermal fluid applications.

1. Ultra-Durable Piston Mechanism: The precision-machined stainless steel piston prevents the common wear and rupture issues of rubber diaphragms, ensuring millions of trouble-free cycles in high-friction environments.

2. 180°C High-Temperature Rating: Equipped with specialized high-temperature seals (such as PTFE), specifically engineered for continuous operation in steam boilers, sterilizers, and thermal oil piping.

3. Stable 0.3-16 Bar Pressure Control: Pilot-operated piston design effortlessly manages heavy-duty system pressures up to 16 Bar, requiring only a 0.3 Bar minimum differential to trigger instant flow.

4. Corrosion-Resistant SS Body (DN15-DN50): Constructed from premium Stainless Steel with standard threaded ports, providing maximum resistance against aggressive chemicals and high-velocity steam erosion.

5. Universal Automation Compatibility: Comes with a thermally insulated IP65 coil compatible with global AC/DC standards (12V, 24V, 110V, 220V), preventing coil burnout in high-heat B2B industrial settings.


Key Application Fields

Oil & Gas

DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines.
Chemical & Petrochemical

DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely.
Power Generation

DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants.
Food & Pharmaceutical

DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity.
Water & Wastewater

Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability.
HVAC & District Heating

DELCO valves ensure precise flow regulation to optimize energy efficiency in modern buildings.
