Sanitary Quick-Release Tri-Clamp Fitting Set (Clamp, Ferrules & Gasket) | DELCO

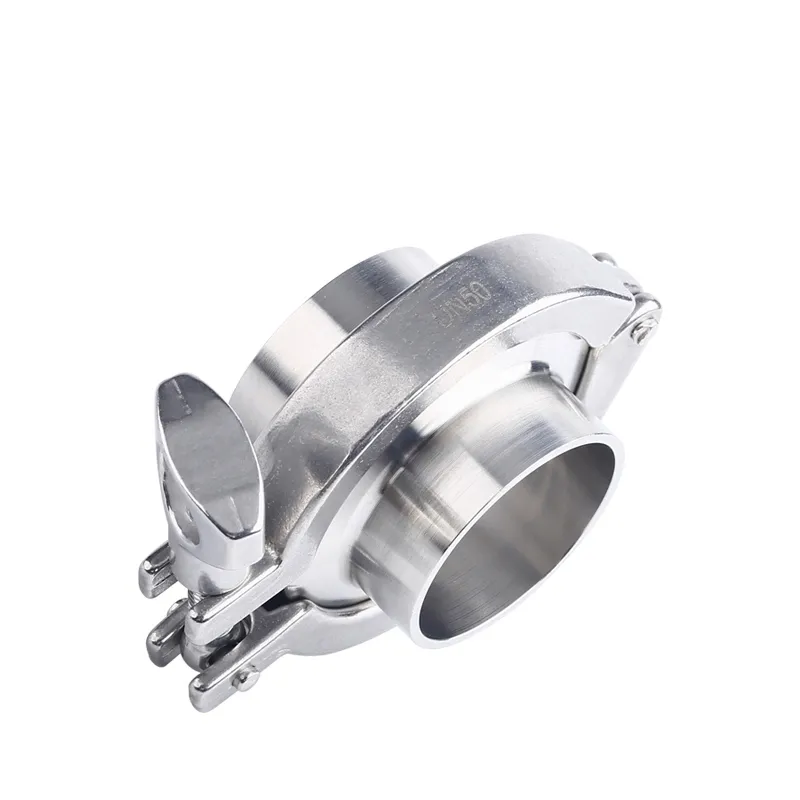

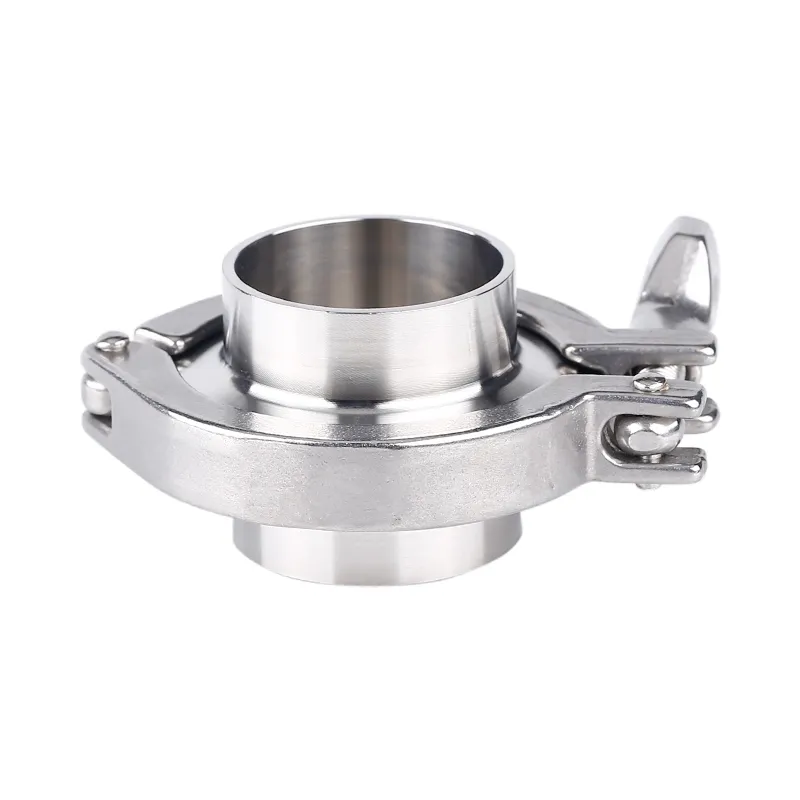

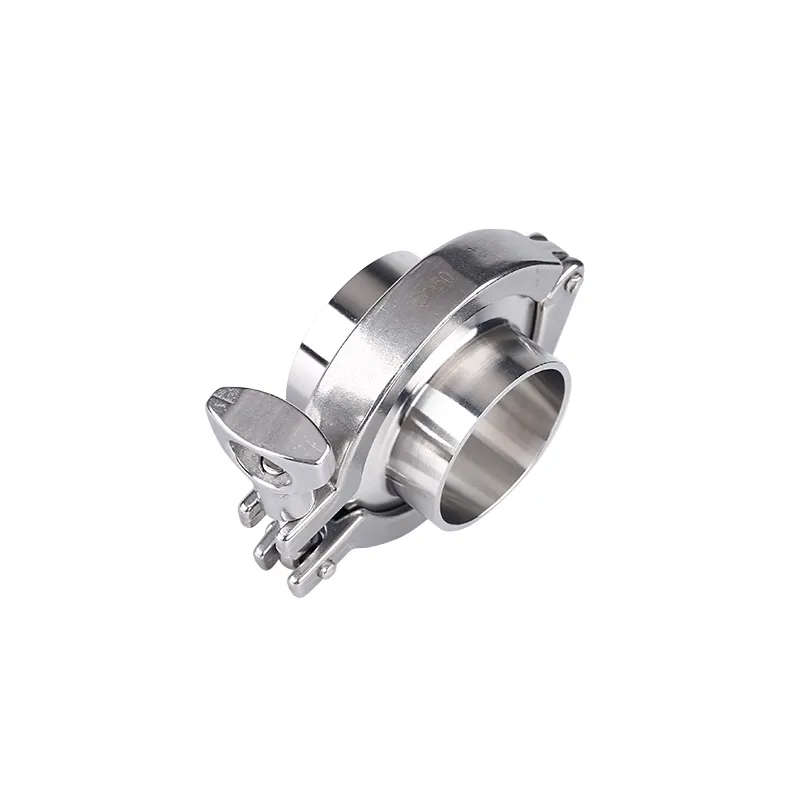

DELCO Sanitary Quick-Release Tri-Clamp Fitting Set is a hygienic connection kit for sanitary piping. It includes a quick-release clamp, two ferrules, and a gasket to form a leak-tight joint that can be opened quickly for cleaning and inspection. Commonly used in food, beverage, dairy, pharmaceutical, and biotech lines. Size standard and gasket material can be supplied to match plant specifications.

Get Free Quote

Features

Quick-release Tri-Clamp connection for hygienic lines, enabling fast disassembly while maintaining a stable seal.

✅Fast Maintenance Access: Quick-release clamp reduces time for cleaning, inspection, and gasket replacement.

✅Hygienic Connection Design: Tri-Clamp structure supports frequent disassembly with minimal tools, suitable for sanitary process lines.

✅Consistent Sealing Interface: Clamp + ferrules + gasket create a repeatable seal; gasket material can be selected for media and cleaning methods.

✅CIP/SIP Application Fit: Commonly applied where routine cleaning and sanitation are required (configuration dependent).

✅Standardized Parts for Line Management: Interchangeable clamp-style components simplify spares and maintenance across multiple lines.


EN 1092-1 PN16 Plate Flange Dimensions

Dimensions

DN	NPS	D (mm) Outside Diameter	b (mm) Thickness	k (mm) Bolt Circle Dia.	n × d (mm) Bolt Holes	d2 (mm) Bore	Weight (kg) SS304
50	2″	165	18	125	4 × 18	50.0	1.2
65	2½”	185	18	145	4 × 18	65.2	1.5
80	3″	200	18	160	8 × 18	80.5	1.8
100	4″	220	20	180	8 × 18	103.0	2.3
125	5″	250	22	210	8 × 18	129.0	3.1
150	6″	285	22	240	8 × 22	154.0	4.0
200	8″	340	22	295	12 × 22	203.0	6.2
250	10″	405	24	355	12 × 22	254.0	9.5
300	12″	460	24	410	16 × 22	303.5	12.8
350	14″	520	26	470	16 × 22	356.0	18.2
400	16″	580	26	525	16 × 26	406.0	23.5

Key Application Fields

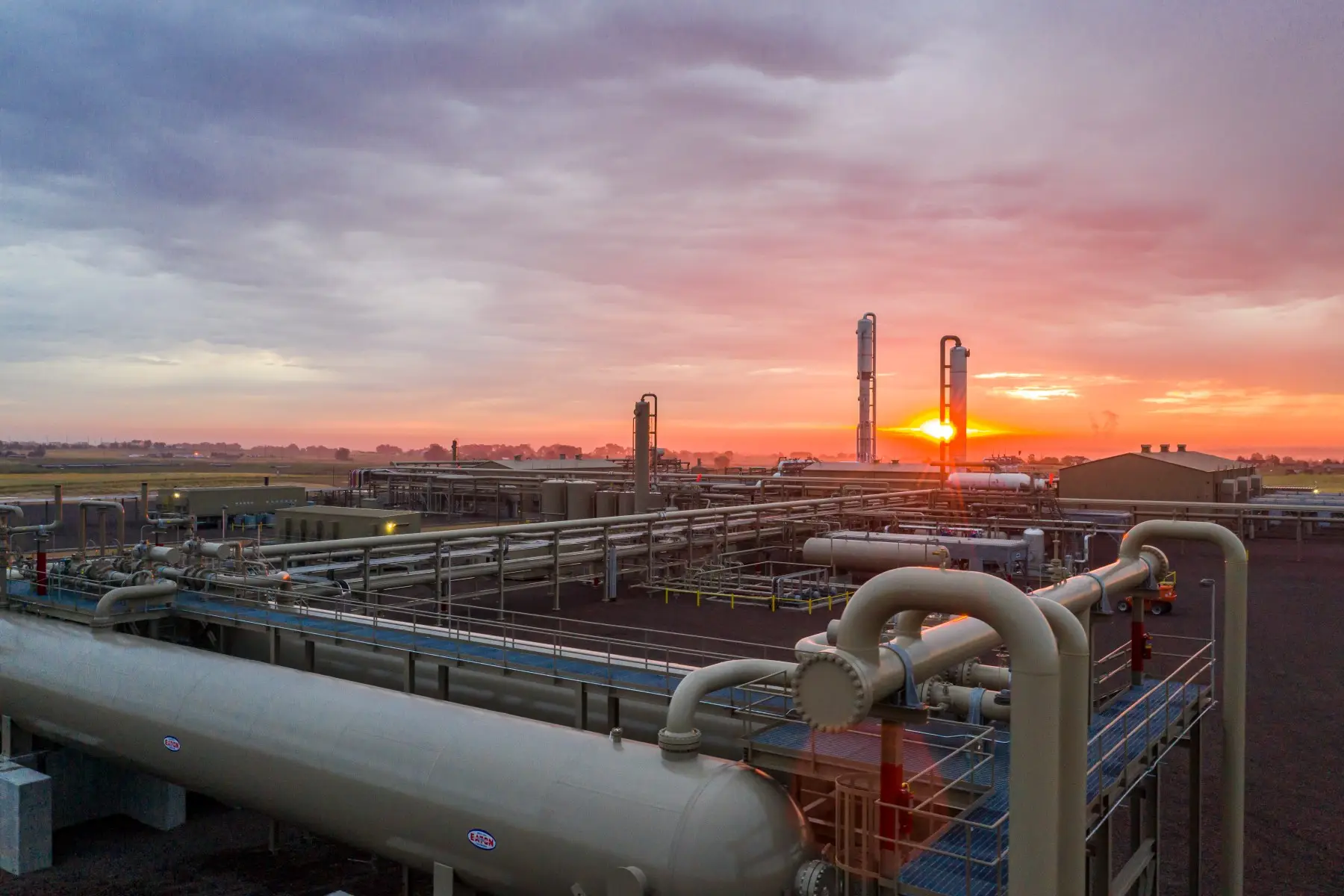

Oil & Gas

DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines.

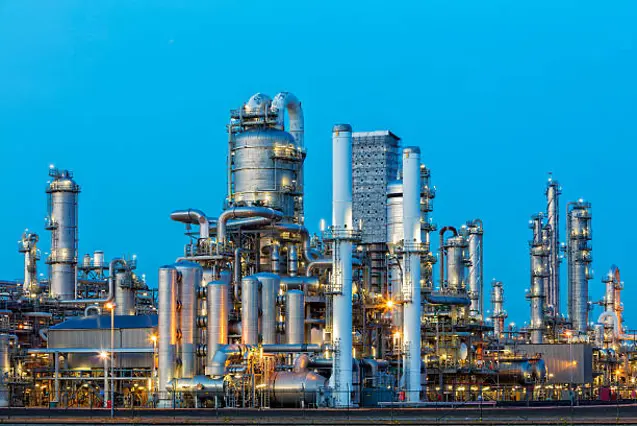

Chemical & Petrochemical

DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely.

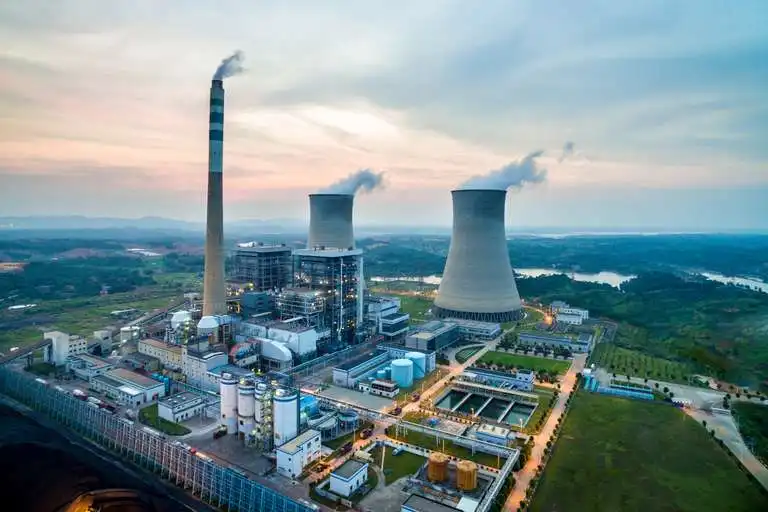

Power Generation

DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants.

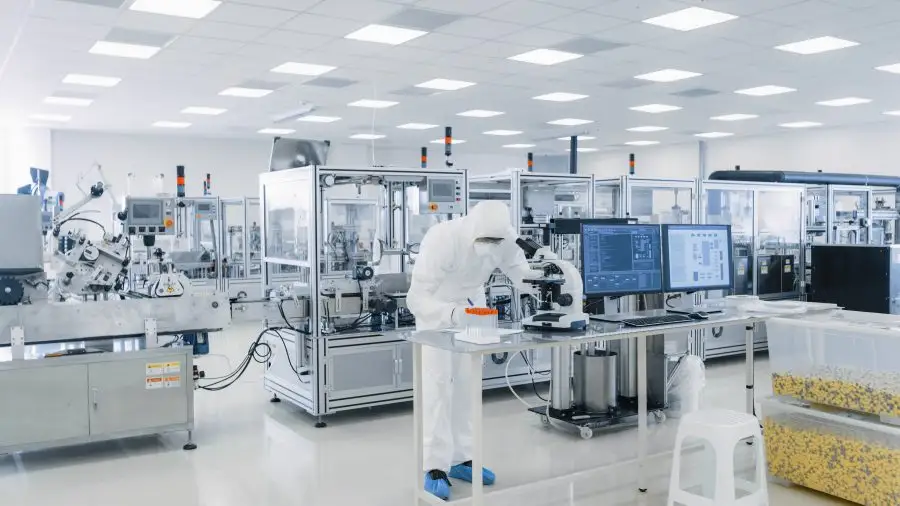

Food & Pharmaceutical

DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity.

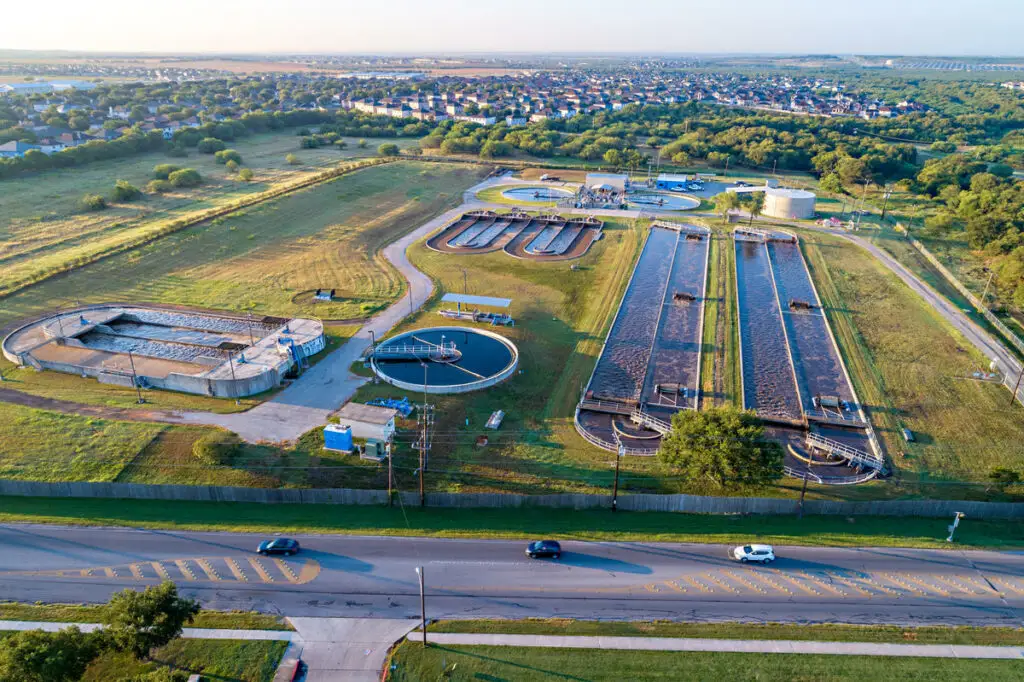

Water & Wastewater

Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability.

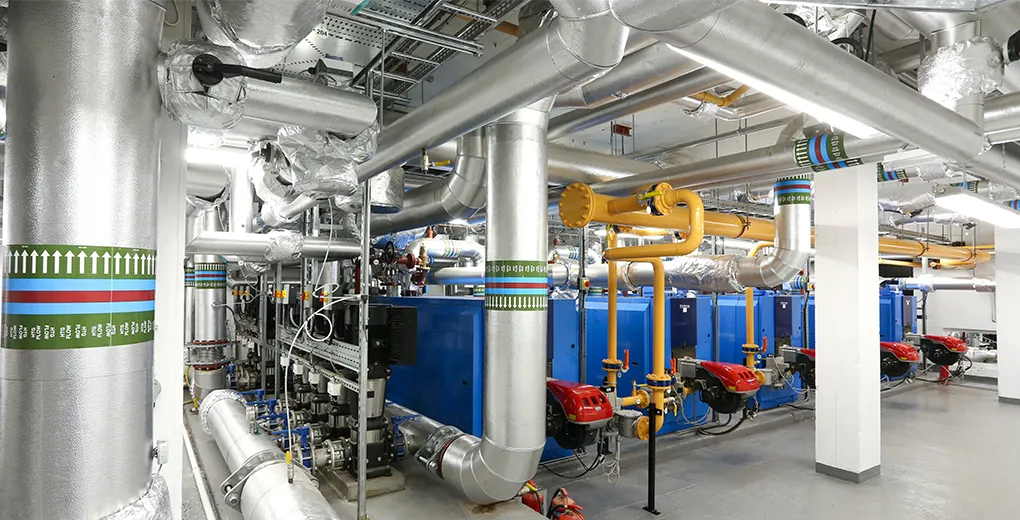

HVAC & District Heating
