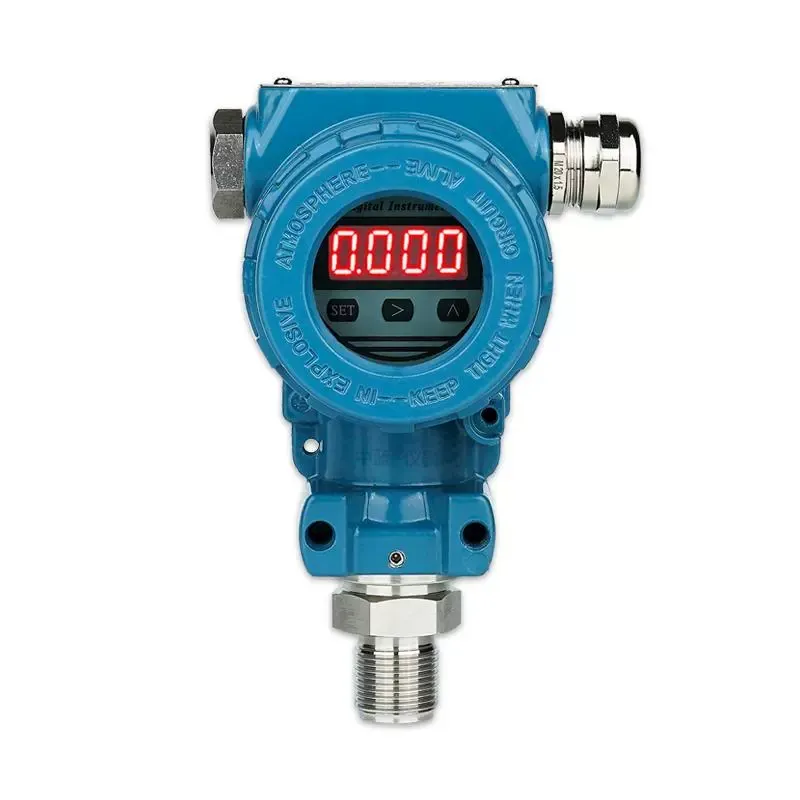

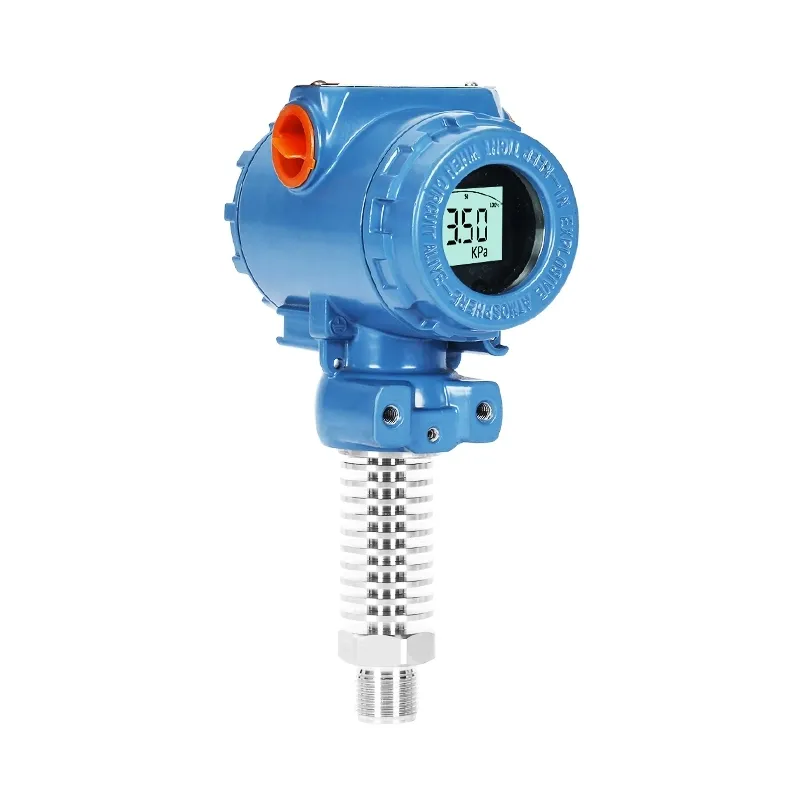

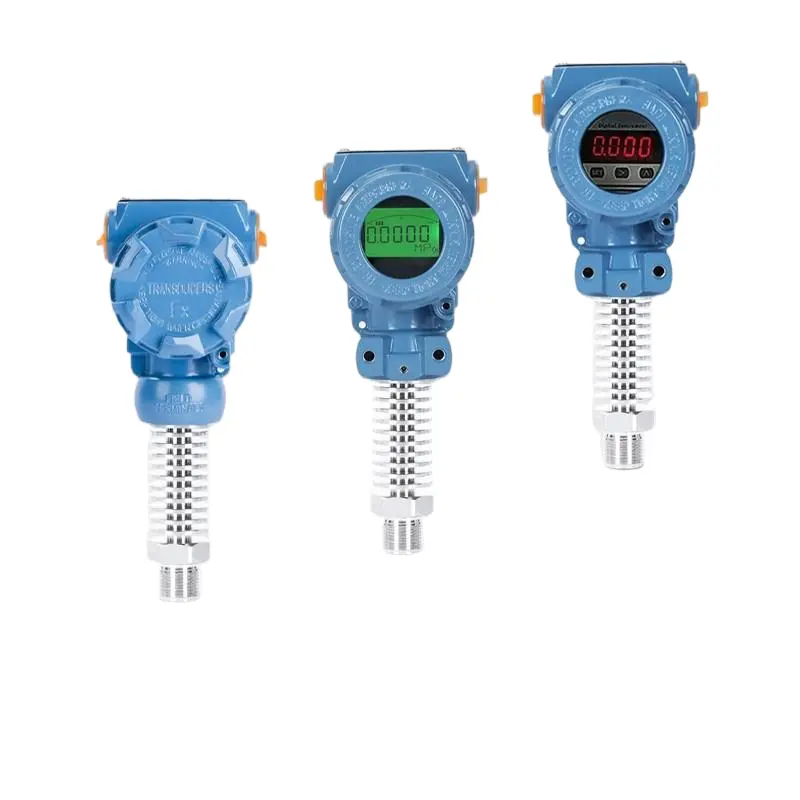

Explosion-Proof Digital Pressure Transmitter with Local Display for Hazardous Areas | DELCO

DELCO Explosion-Proof Digital Pressure Transmitter is designed for pressure measurement and signal transmission in hazardous industrial sites. The integrated local display provides clear on-site reading for commissioning and routine inspection. It is suitable for monitoring gases, liquids, and process fluids across typical plant applications. Pressure range, output signal, process connection, and explosion-proof rating can be configured to match project requirements and site standards.

Get Free Quote

Features

Explosion-proof design with local digital indication, enabling safer and more efficient pressure monitoring in hazardous areas.

✅Local Digital Indication: On-site display simplifies commissioning, calibration checks, and troubleshooting without extra handheld tools.

✅Hazardous-Area Ready Design: Built for use where explosion-proof protection is required; rating and certification options can match local compliance needs.

✅Configurable Output & Integration: Supports common transmitter outputs and system integration options for PLC/DCS applications (subject to model configuration).

✅Process Connection Flexibility: Multiple process connection and installation options help fit different piping layouts and equipment interfaces.

✅Industrial Field Durability: Sealed enclosure and robust housing are designed for long-term service in harsh plant environments (protection level per configuration).


EN 1092-1 PN16 Plate Flange Dimensions

Dimensions

DN	NPS	D (mm) Outside Diameter	b (mm) Thickness	k (mm) Bolt Circle Dia.	n × d (mm) Bolt Holes	d2 (mm) Bore	Weight (kg) SS304
50	2″	165	18	125	4 × 18	50.0	1.2
65	2½”	185	18	145	4 × 18	65.2	1.5
80	3″	200	18	160	8 × 18	80.5	1.8
100	4″	220	20	180	8 × 18	103.0	2.3
125	5″	250	22	210	8 × 18	129.0	3.1
150	6″	285	22	240	8 × 22	154.0	4.0
200	8″	340	22	295	12 × 22	203.0	6.2
250	10″	405	24	355	12 × 22	254.0	9.5
300	12″	460	24	410	16 × 22	303.5	12.8
350	14″	520	26	470	16 × 22	356.0	18.2
400	16″	580	26	525	16 × 26	406.0	23.5
