DK67-WB-S Pneumatic Wafer Stainless Steel Soft Seal Butterfly Valve for Beverage, HVAC, and Water Systems

DELCO's DK67-WB-S Pneumatic Wafer Butterfly Valve combines a stainless steel body and soft seal, offering high corrosion resistance and superior sealing performance. Its wafer-style design is compact and lightweight. Equipped with a pneumatic actuator, it provides reliable automated control for flow cutoff and adjustment in general industrial, food-grade, and demanding water applications.

Size Range: DN40-DN1200

Material:Cast Iron, WCB, SS304/316 etc.

Connection Standard: GB / ANSI / JIS /DIN

Get Free Quote

Features

Corrosion Resistance and Automated Sealing for Fluid Control

✅ Corrosion-Resistant Construction: The valve utilizes a stainless steel body (304/316) for excellent corrosion resistance, making it suitable for both general industrial and food-grade media.

✅ Superior Soft Sealing Performance: Features an NBR or EPDM soft seal ring that is wear-resistant and easy to replace. The design ensures bi-directional sealing and achieves zero leakage under low-pressure differential conditions.

✅ Automated Pneumatic Control: Paired with a reliable pneumatic actuator (AT Series) for quick and accurate 90° rotation, offering automated ON/OFF or adjusting control.

✅ Lightweight Wafer Body: The wafer-type body is compact and lightweight, facilitating easy installation and minimizing the footprint within pipeline systems.

✅ Optimized for Water and Fluid Industries: This valve is ideally suited for various fluid control sectors, including Beer Brewing Equipment, HVAC Water Systems, and Ship Ballast Water Control.


Specifications & Dimensions

Specifications Dimensions

Technical Specifications	Details
Model	DELCO DK67-WB-S Series
Product Type	Pneumatic Wafer Stainless Steel Soft Seal Butterfly Valve
Nominal Port Size	DN40 – DN1200
End Connection	Wafer Type (Clamp Type)
Pressure Rating	PN10, PN16, ANSI 150LB
Body Material	Stainless Steel (304 / 316)
Disc Material	Stainless Steel (Nylon Coated)
Lining / Seat Material	NBR, EPDM, Rubber, PTFE
Applicable Medium	Food Grade Media, HVAC Water, Ship Ballast Water, General Industrial Media
Leakage Class	ANSI Class VI (Zero Leakage) / Bidirectional Sealing Design
Actuator Type	AT Series / AW Series Pneumatic Actuator
Control Signal	4-20mA (with Locator)
Certifications	ISO9000, ROHS, CE, FDA
Applications	Beer Brewing, Beverage, HVAC, Water Treatment

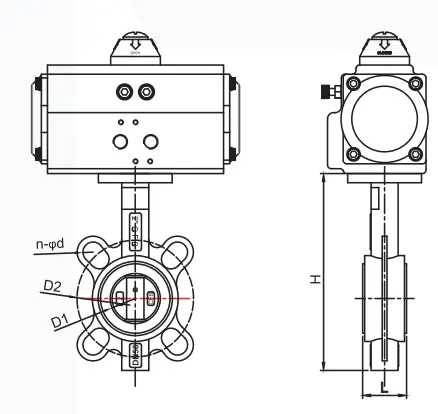

Model	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300	DN350	DN400	DN500
Inch	2″	2-1/2″	3″	4″	5″	6″	8″	10″	12″	14″	16″	20″
D	52.7	64.4	78.8	104.2	123.3	157	202.5	250.5	301.6	333.3	389.6	491.6
D1	89	104	127	153	180	206	270	320	368	428	482	605
D2	125	145	160	180	210	240	295	355	410	470	525	585
L	41	43	45	50	54	54	60	66	75.5	86.5	86.5	131.8
H	207	219	232	262	265	296	353	390	460	508	597	677
n-Φd	4-Φ18	4-Φ18	4-Φ18	4-Φ18	4-Φ18	4-Φ23	4-Φ23	4-Φ23	4-Φ26	4-Φ26	4-Φ26	4-Φ30
