Home / Product / 电动阀 / 精小型电动阀 / DK60-3PS Series 2-Way 3-Piece Stainless Steel Motorized Ball Valve for Industrial Automation

Catalog: 精小型电动阀

Model:

DK60-3PS

DK60-3PS Series 2-Way 3-Piece Stainless Steel Motorized Ball Valve for Industrial Automation

DELCO's DK60-3PS Series 2-Way 3-Piece Stainless Steel Electric Ball Valve is a compact, corrosion-resistant fluid control device. Primarily used for cutting off, distributing, or switching flow, its three-piece split body and electric drive enable easy maintenance and wide application in chemical, food, and energy industrial systems.

Size Range: DN15-DN50

Material: Brass, Stainless Steel, Plastic etc.

Connection Standard: G / NPT

Get Free Quote

Features

Quick Installation Design and Robust Stainless Steel Automation

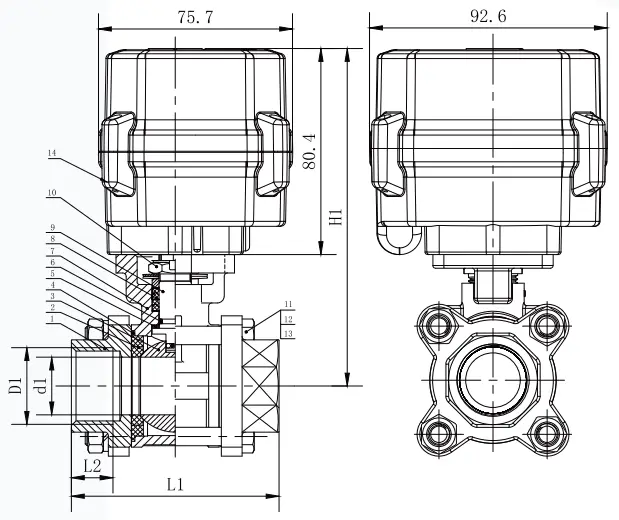

✅ Quick Disassembly 3-Piece Design: Adopting a three-stage (left housing, middle body, right housing) split structure, it is clamped and fixed by long bolts for easy disassembly. Internal components can be replaced without disassembling the pipeline.

✅ Corrosion-Resistant Materials: The valve body and ball are made of stainless steel (SS304 as standard, SS316 optional) for superior corrosion resistance. The sealing components use FKM and PTFE to ensure excellent chemical compatibility and long-term durability.

✅ Versatile Power and Control: Supports a wide range of rated voltages from DC5V up to AC/DC110-230V. This DK60-3PS electric ball valve is designed for reliable ON/OFF control with various wiring options available.

✅ High Performance and Durability: Features a maximum working pressure of 1.6MPa and an actuator rotation of 90°. The valve has an impressive rated life of 70,000 cycles (tested at 0.4MPa with water).

✅ High-Level Protection and Manual Override: The electric actuator has an IP67 protection class. It is equipped with both a manual operation function and an open/close indicator for reliable field use.
