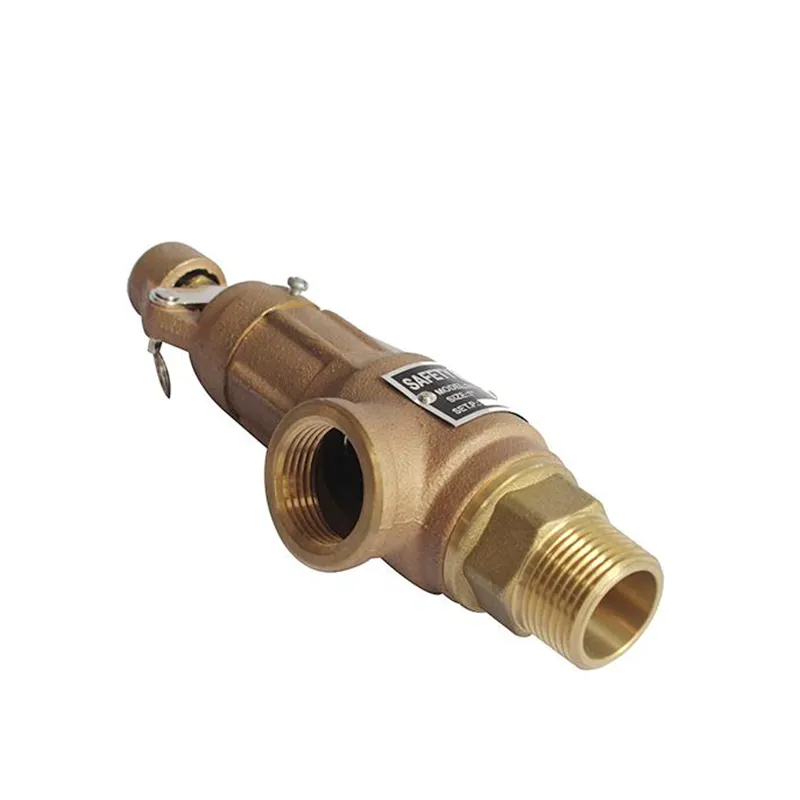

DELCO S10 Bronze / Brass Threaded Safety Valve, Male Inlet, Lever or Sealed Cap
A cost-effective and durable solution for general utility applications, the S10 Series Bronze Safety Valve is engineered for reliable overpressure protection in non-corrosive systems. Manufactured from high-quality Bronze/Brass, it offers a compact threaded design ideal for protecting water pumps, air tanks, and low-pressure steam boilers.
Material: Brass, Stainless Steel etc.
Flange Standard: BSP / NPT /G Size: DN15-DN50
Applicable Medium: Water, Steam, Air etc.
Features
An economical bronze safety valve with threaded connections, providing essential pressure relief for water, oil, and air systems.
✅Corrosion-Resistant Bronze Body: The main body is cast from durable Bronze (C83600) or forged Brass, offering excellent resistance to scaling and oxidation in water and compressed air services, outlasting cast iron alternatives.
✅Versatile Media Compatibility: Suitable for a wide range of non-corrosive fluids including Water, Oil, Air, and Low-Pressure Steam, making it a versatile choice for commercial plumbing and HVAC applications.
✅Choice of Lifting Mechanism: Available in two configurations: With Lever (Type SV-B29) for manual testing required in steam/air systems, or Sealed Cap (Type SV-B27) for liquid service where leakage prevention is prioritized.
✅Standard Threaded Connections: Features a Male NPT/BSP Inlet and Female Outlet for easy, leak-free installation into standard pipe fittings, simplifying maintenance and replacement in tight mechanical rooms.
✅Metal-to-Metal or PTFE Soft Seat: Options for a precision-machined metal seat for high-temperature durability or a PTFE Soft Seat for superior bubble-tight sealing in gas applications, ensuring zero leakage during normal operation.
Key Application Fields
-
Oil & Gas
DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines. -
Chemical & Petrochemical
DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely. -
Power Generation
DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants. -
Food & Pharmaceutical
DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity. -
Water & Wastewater
Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability. -
HVAC & District Heating
DELCO valves ensure precise flow regulation to optimize energy efficiency in modern buildings.
