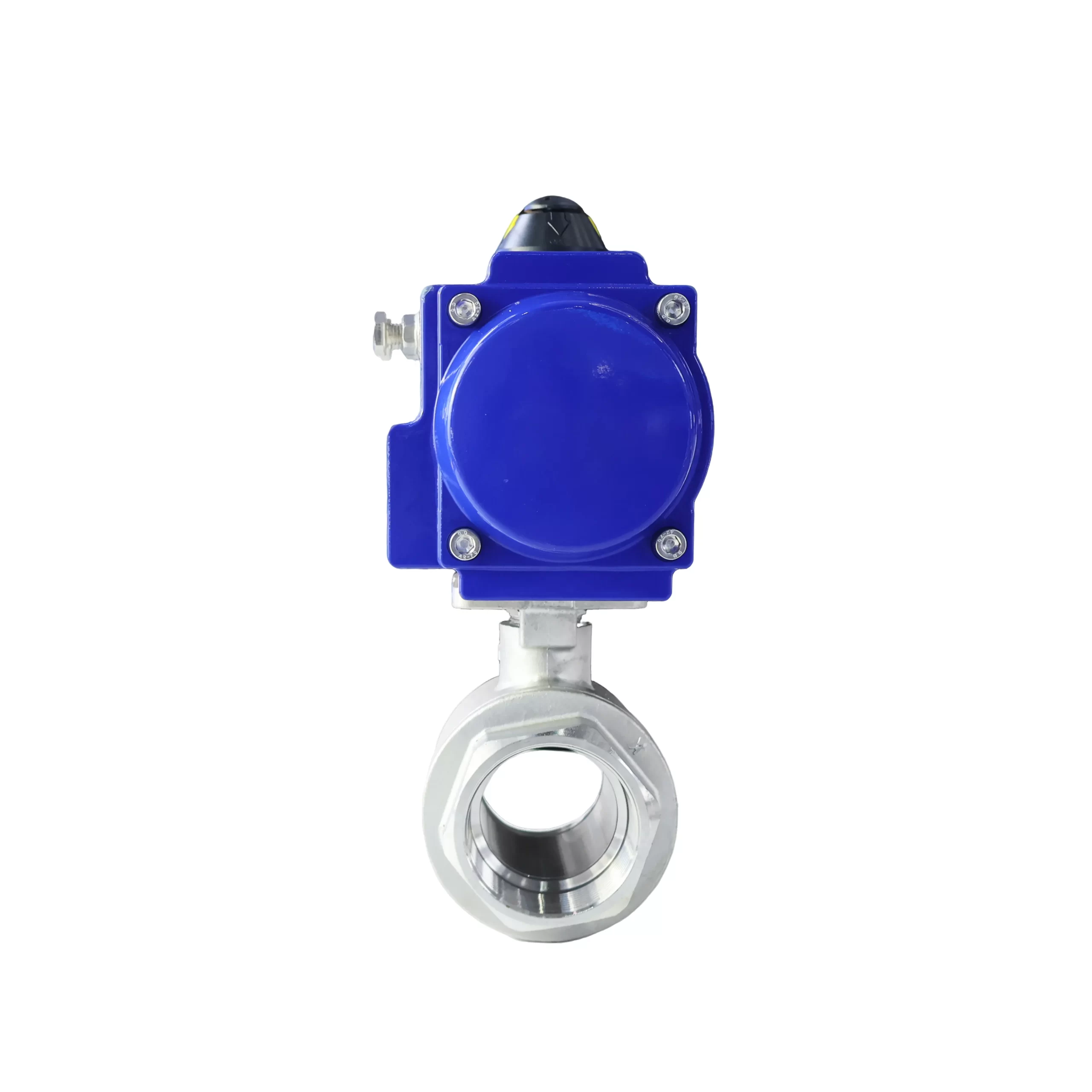

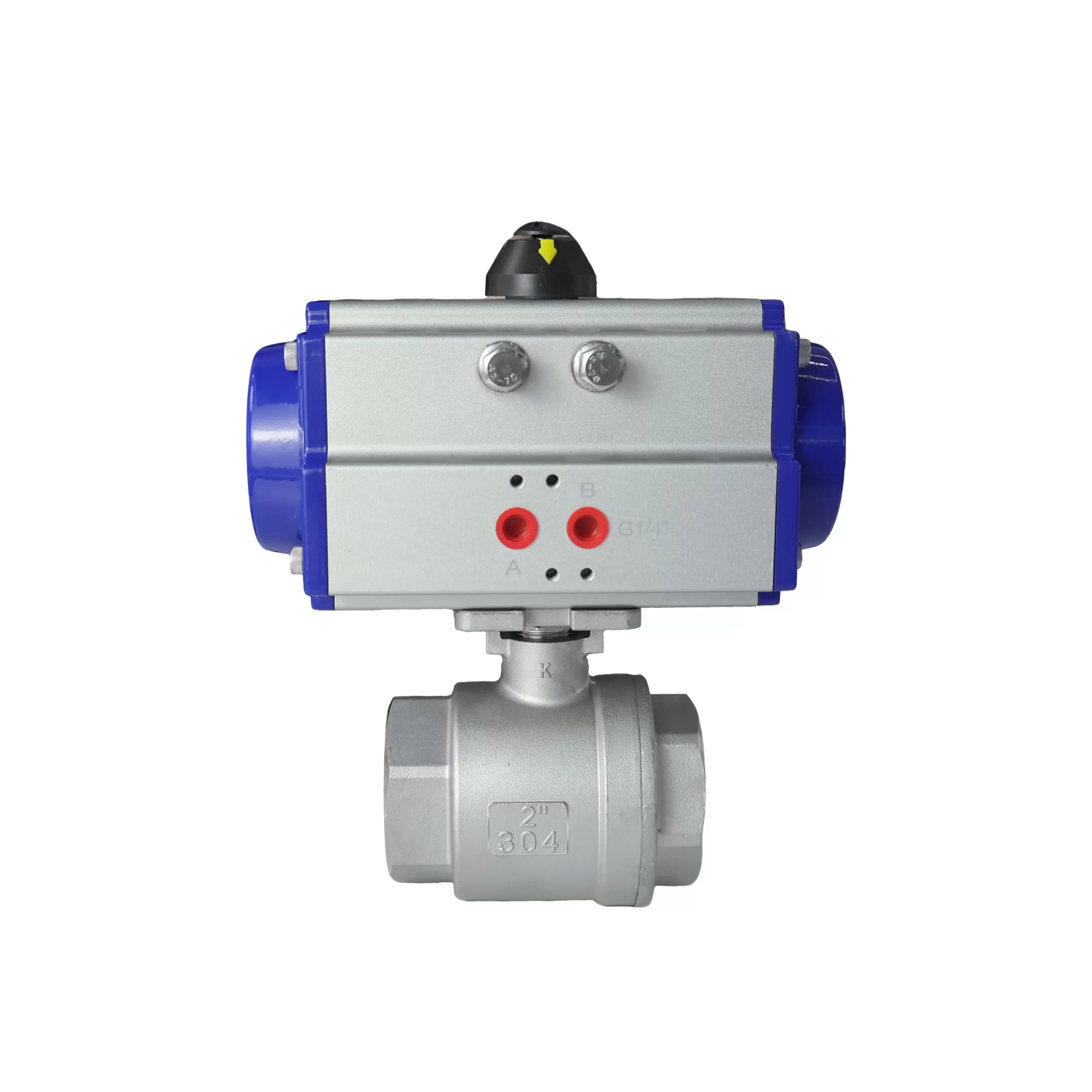

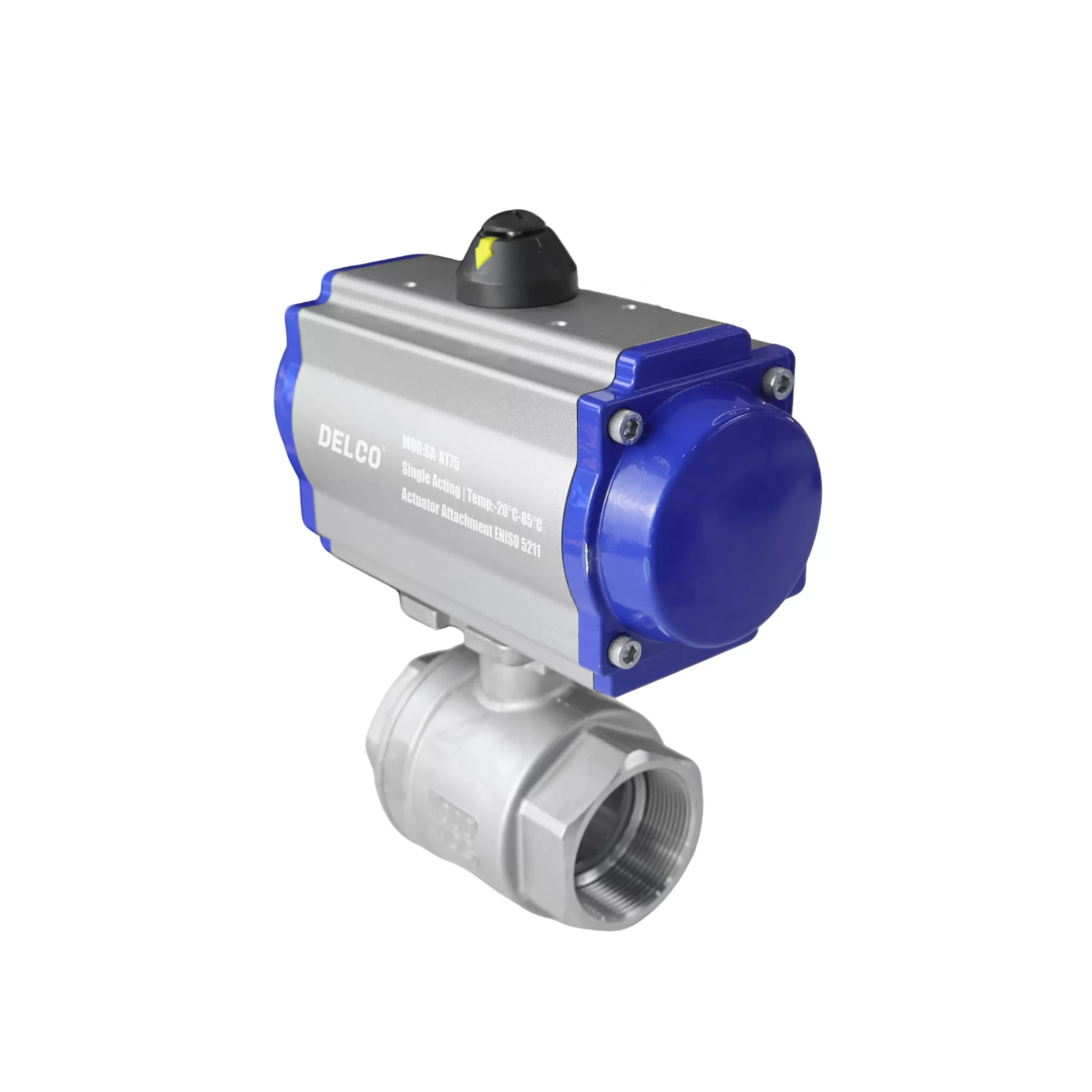

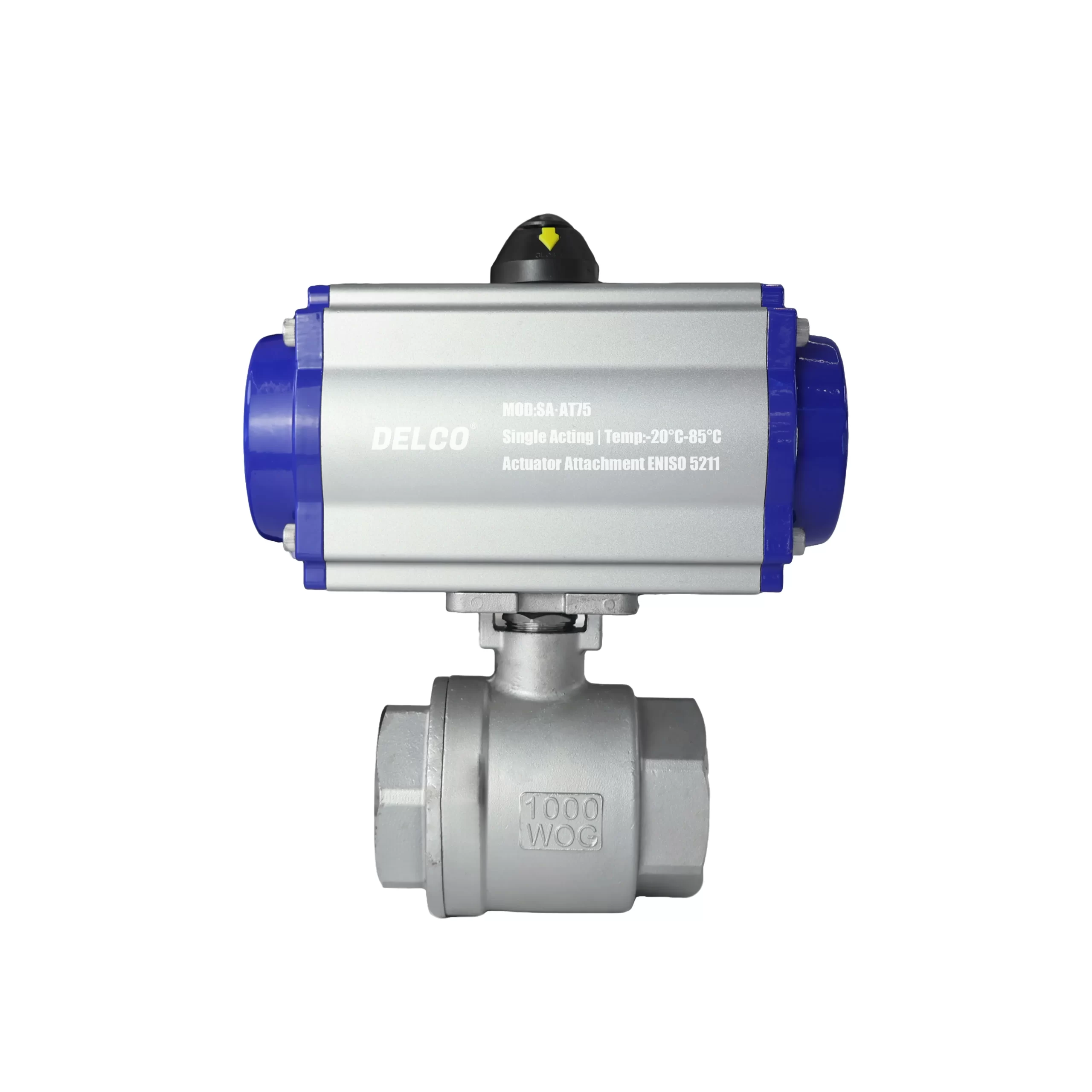

DELCO DK66-2PS Pneumatic 2-Piece Ball Valve – Internal Thread, Full Bore

The DELCO DK66-2PS is a cost-effective pneumatic ball valve featuring a standard 2-piece threaded body. It offers a stable, leak-proof solution for general industrial automation. Powered by a rapid-response pneumatic actuator, it is widely used for water, air, and light chemical applications where inline maintenance is not required.

Size Range: DN06-DN100

Material: WCB, Stainless Steel etc.

Connection Standard: G / BSPT / NPT

Get Free Quote

Features

An economical pneumatic 2-piece threaded ball valve with full bore flow, designed for reliable automation in general water and air systems.

✅Economical 2-Piece Design: The split-body construction minimizes leak paths and manufacturing costs, offering a more budget-friendly solution than Pneumatic 3-Piece Ball Valves for standard installations.

✅Full Bore Efficiency: Features a full-port design that matches the pipe diameter, ensuring maximum flow capacity and minimal pressure drop for efficient fluid transfer.

✅Secure Threaded Ends: Equipped with precision NPT or BSP internal threads, allowing for quick and tight installation into standard piping systems without welding.

✅Fast Pneumatic Actuation: Driven by a Rack & Pinion pneumatic actuator (Double Acting or Spring Return), providing split-second opening and closing times for rapid process cycling.

✅Durable Sealing: Utilizes reinforced PTFE/RPTFE seats to ensure a long-lasting bubble-tight seal, suitable for water, compressed air, and non-corrosive oils.


Main Parts Materials Dimension of 2 way high-pressure pneamatic ball valve

Key Application Fields

Oil & Gas

DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines.
Chemical & Petrochemical

DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely.
Power Generation

DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants.
Food & Pharmaceutical

DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity.
Water & Wastewater

Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability.
HVAC & District Heating

DELCO valves ensure precise flow regulation to optimize energy efficiency in modern buildings.
