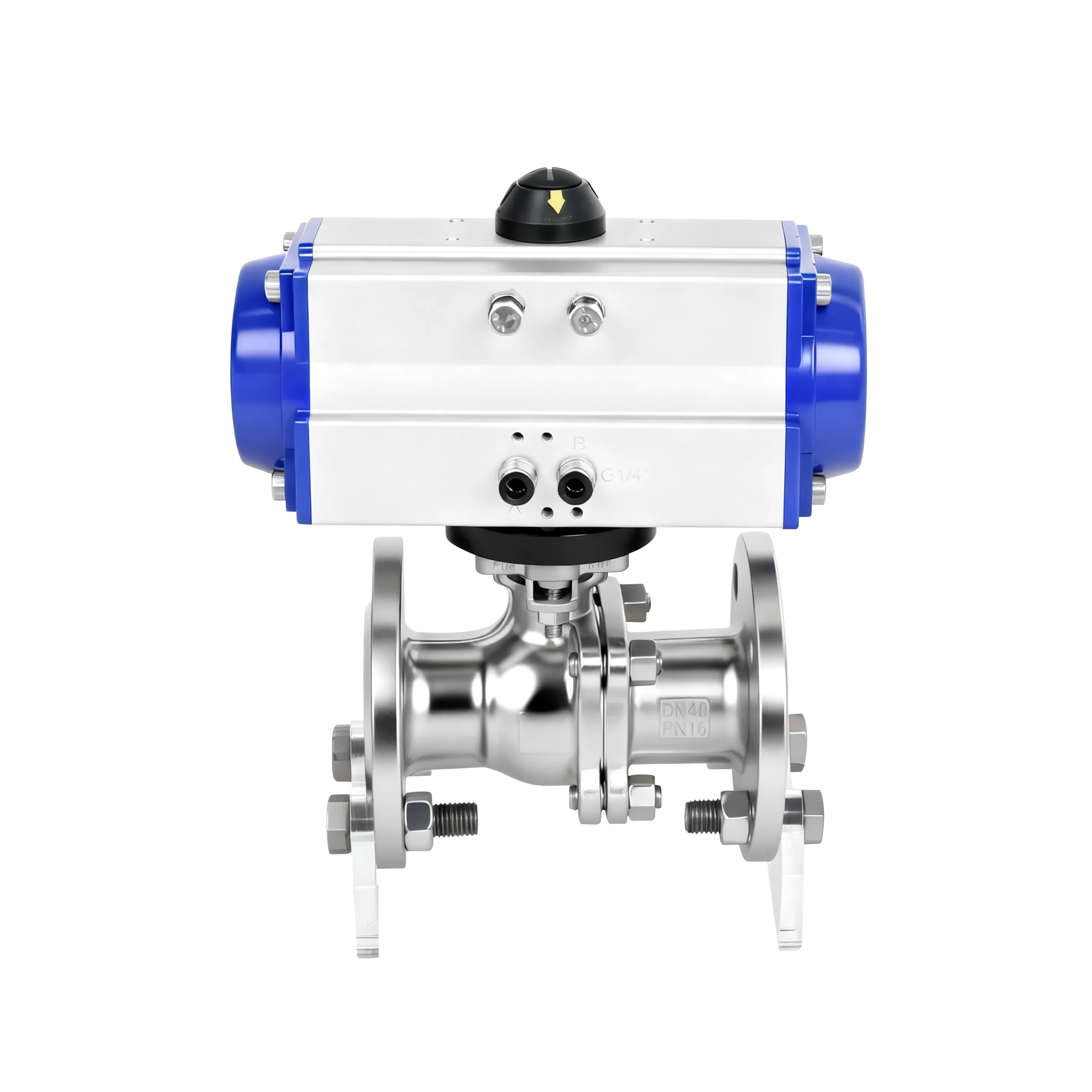

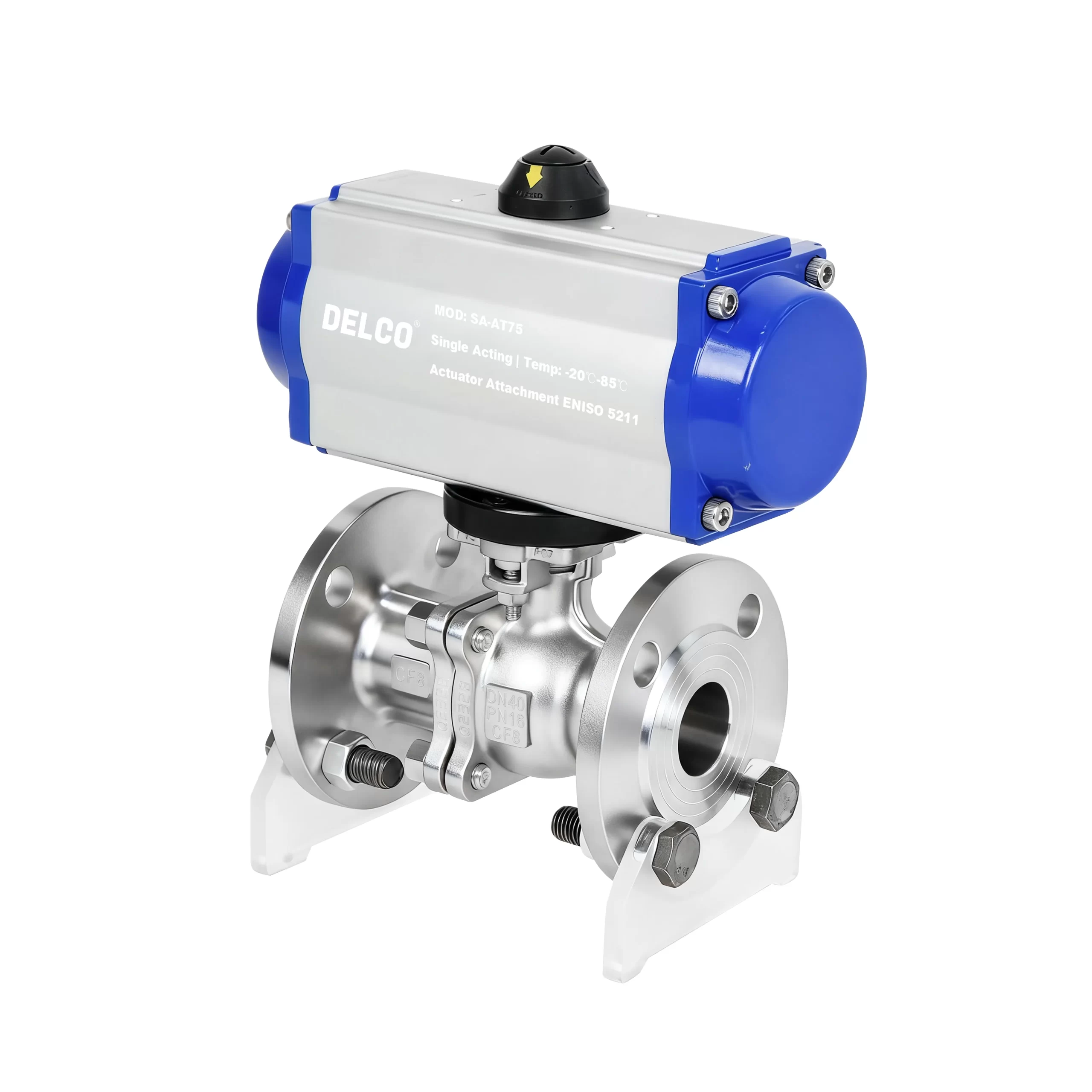

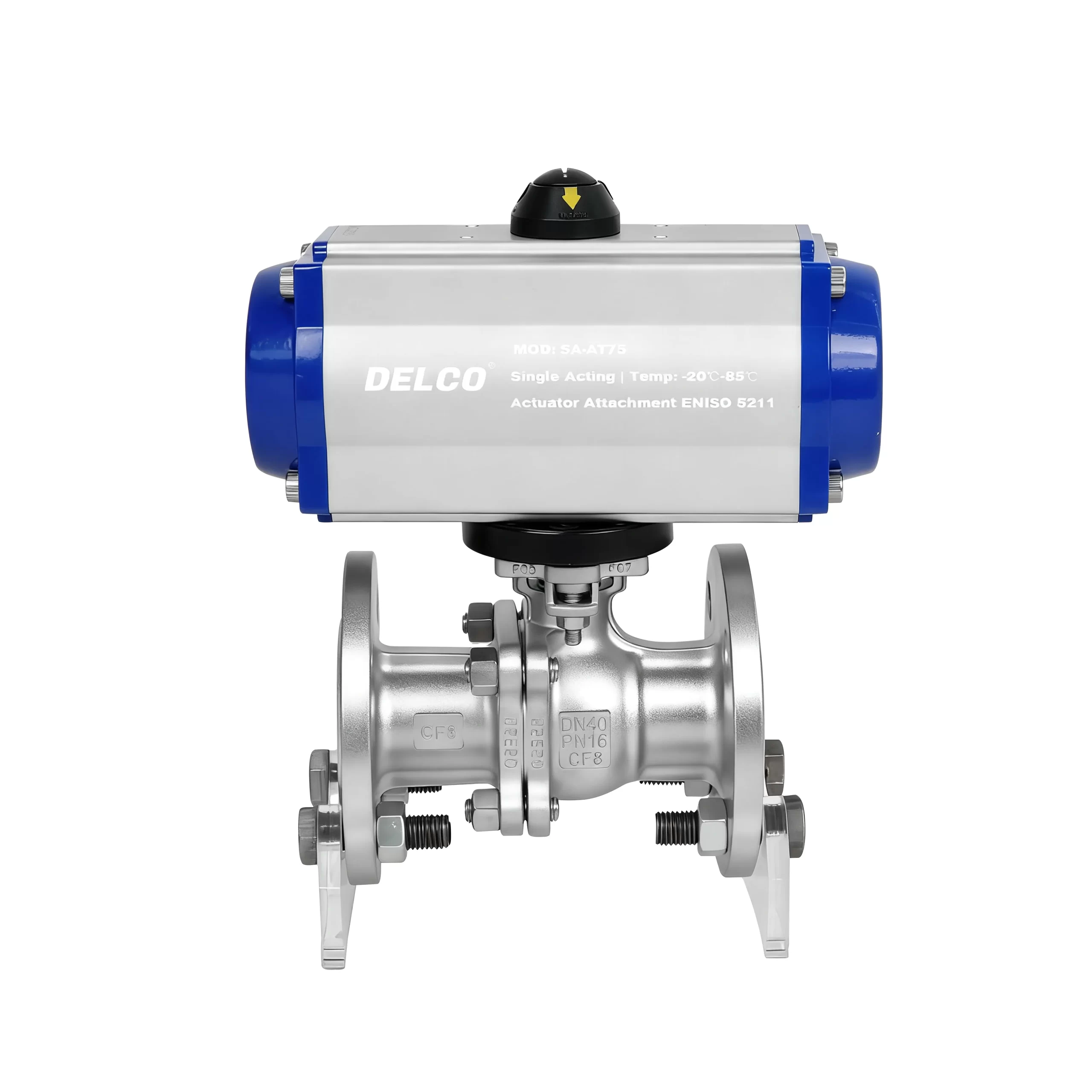

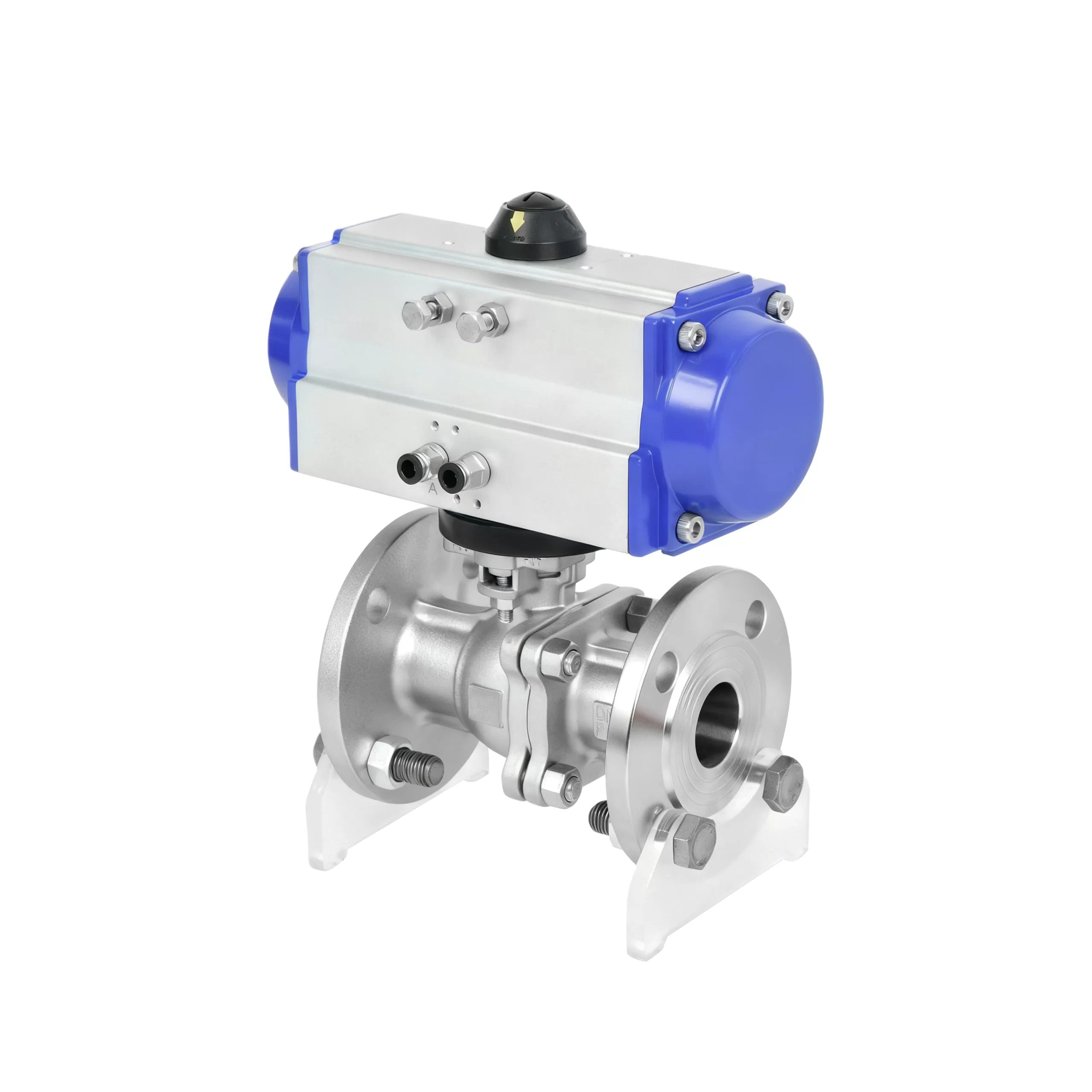

DELCO DK66-2PF Pneumatic Stainless Steel Flanged Ball Valve – Full Port Design

The DELCO DK66-2PF Stainless Steel Flanged Ball Valve is a high-integrity component designed for reliable fluid isolation and flow regulation in demanding industrial applications. Constructed from premium Stainless Steel (SS304/SS316), it offers exceptional resistance to corrosive chemicals, liquids, and gases. Its Full-Port Design ensures minimal turbulence and pressure drop. Ready for quarter-turn actuation, this valve provides bubble-tight shut-off and long service life, serving as a robust solution for automated industrial pipelines.

Size Range: DN15-DN350

Material: WCB, Stainless Steel etc.

Connection Standard: GB / ANSI / JIS /DIN

Get Free Quote

Features

A high-integrity, full-port stainless steel flanged ball valve built for superior corrosion resistance and tight shut-off, making it an ideal choice for automated industrial processes.

✅High Corrosion Resistance: Constructed with a heavy-duty Stainless Steel body (SS304/SS316), providing excellent defense against corrosive fluids, brine, and high-purity applications.

✅Full Port/Full Bore Flow: The valve’s bore size matches the pipeline size, minimizing flow restriction, maximizing throughput, and reducing energy costs associated with pumping.

✅Bubble-Tight Sealing Performance: Utilizes precision-machined ball and robust PTFE/RPTFE seats to guarantee bubble-tight (Class VI) shut-off capability in both flow directions.

✅Robust Flanged Connection: Standardized flanged ends (e.g., ANSI Class 150/300 or DIN PN16/40) ensure a secure, high-strength, and stable mounting point for permanent industrial service.

✅ISO 5211 Mounting Pad: Equipped with an international standard ISO 5211 mounting platform, ensuring universal compatibility and easy assembly with any choice of pneumatic or electric actuator.
