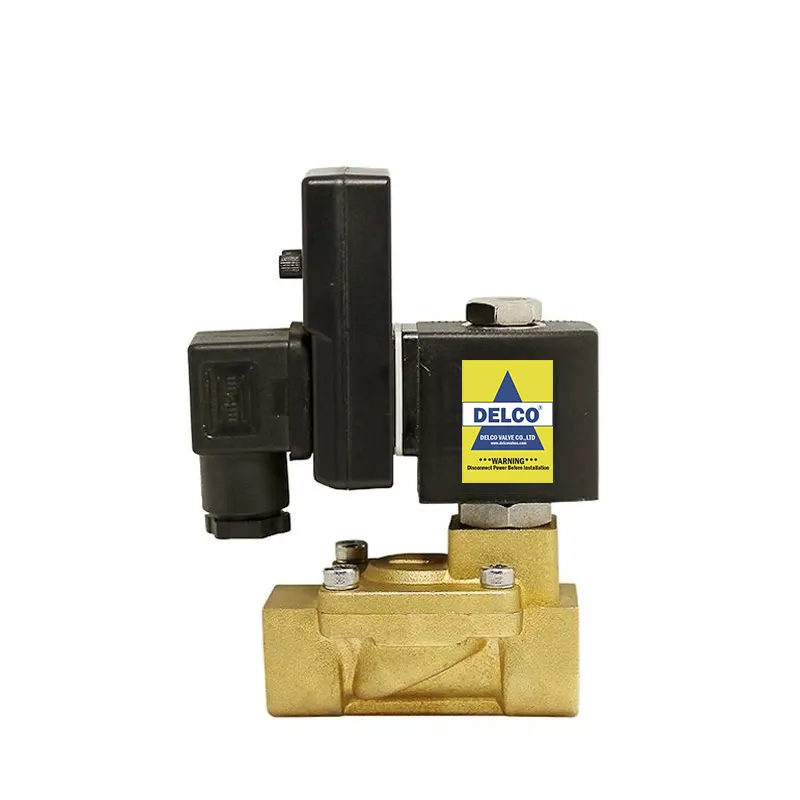

Brass Pilot Operated Solenoid Valve with Timer DN15-DN50 | DELCO
Brass pilot operated solenoid valve with timer automates fluid control. DN15-DN50, 0.3-16 Bar, G/NPT. Ideal for air compressor drains and smart irrigation.
Size Range: DN15-DN50
Pressure Range: 0.3-16Bar
Thread Standard: G / BSPP / NPT
Voltage: AC/DC 12V/24V110V/220V
Key Features
Featuring an integrated programmable timer, this heavy-duty brass pilot-operated solenoid valve automates periodic draining and watering tasks, handling system pressures up to 16 Bar with minimal energy consumption.

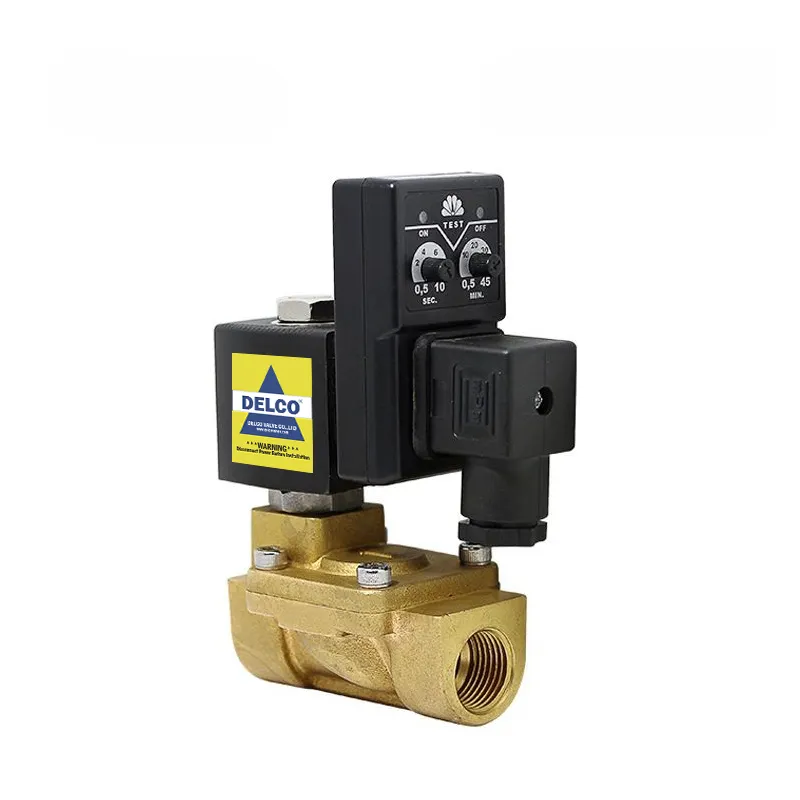

1. Integrated Programmable Timer: Easily configure ON (discharge) and OFF (interval) cycle times. Perfect for automating condensate drains in air compressors or scheduling large-scale irrigation systems.
2. High-Pressure Pilot Mechanism: Uses line pressure to operate, efficiently handling high-pressure applications up to 16 Bar. Requires a minimum differential pressure of 0.3 Bar to actuate.
3. Durable Forged Brass Body: Constructed from high-quality brass (DN15-DN50) with precision G, BSPP, or NPT threads, ensuring long-term mechanical strength in water and compressed air pipelines.
4. Energy-Efficient Coil (AC/DC): The pilot-operated design allows a smaller, energy-saving coil to control large flow rates. Compatible with standard 12V, 24V, 110V, and 220V power sources.
5. IP65 Weatherproof Protection: Both the solenoid coil and the timer module are rated IP65 to resist dust, moisture, and outdoor weather, ensuring safe operation in damp industrial environments.
Key Application Fields
-
Oil & Gas
DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines. -
Chemical & Petrochemical
DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely. -
Power Generation
DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants. -
Food & Pharmaceutical
DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity. -
Water & Wastewater
Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability. -
HVAC & District Heating
DELCO valves ensure precise flow regulation to optimize energy efficiency in modern buildings.
Browse our case studies or talk directly with our engineers to discuss your application.
