Home / Product / 电磁阀 / 2W-F Direct Acting Stainless Steel Flanged Diaphragm Solenoid Valve

Catalog: 直动式电磁阀

Model:

2W-F

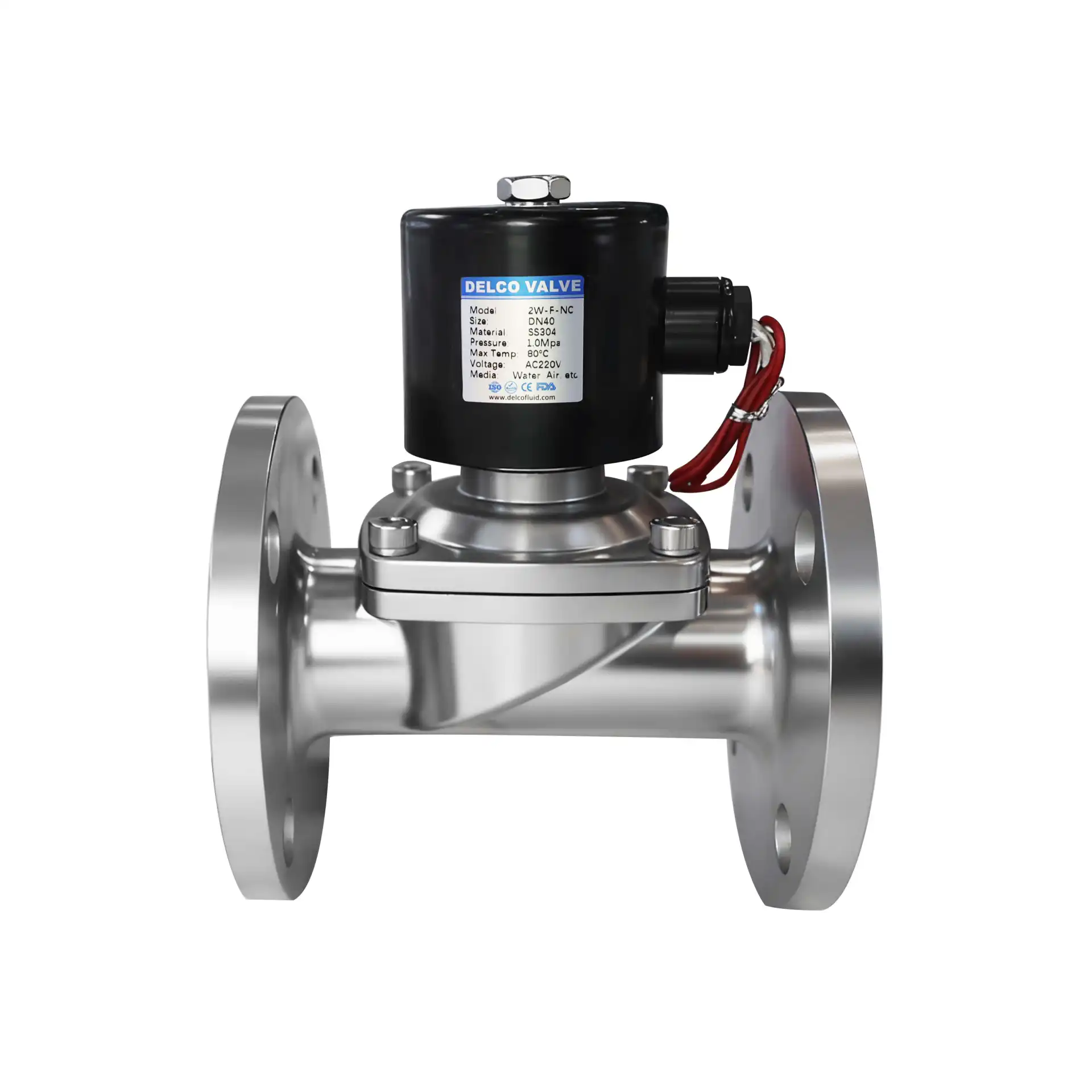

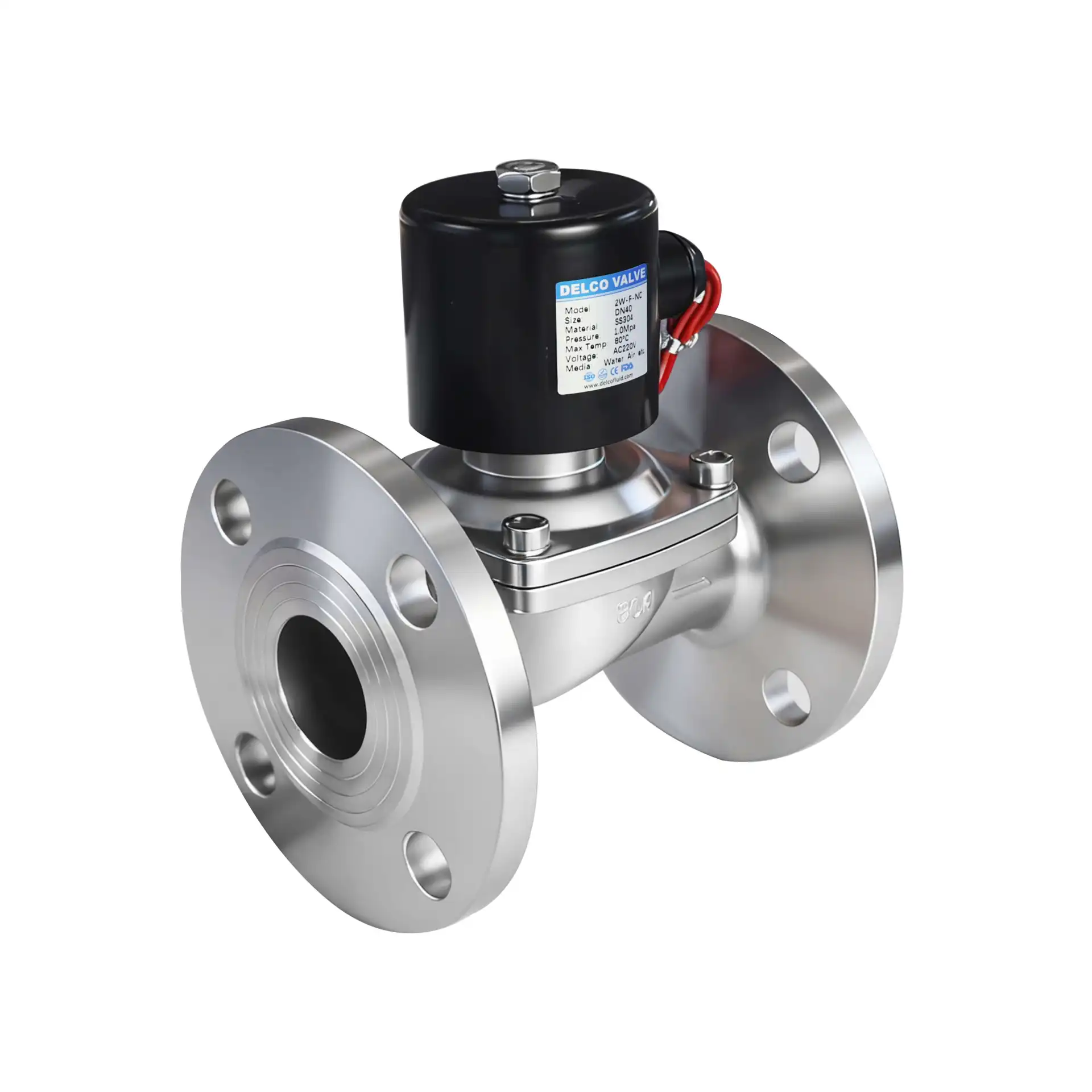

2W-F Direct Acting Stainless Steel Flanged Diaphragm Solenoid Valve

The 2W-F Series is a heavy-duty direct-acting solenoid valve specifically designed with flanged end connections for high-flow industrial piping. Constructed entirely from durable Stainless Steel (SS304/SS316), this valve provides superior corrosion and heat resistance for a wide range of media including chemicals, steam, and industrial water. The flanged design ensures robust, leak-proof installation in high-vibration and large-diameter pipelines.

Size Range: DN15-DN100 Pressure Range: 0-10Bar

Flange Standard: GB / ANSI

Voltage: AC/DC 12V/24V110V/220V

Get Free Quote

Features

Equipped with a sturdy flanged body for high-pressure installation, this direct-acting stainless steel valve provides zero-pressure start capability and enhanced corrosion resistance for large-scale industrial fluid control.

✅Flanged Connection Design: Utilizes standard ANSI/DIN/JIS flanged ends (specify standard like PN16 or Class 150) for robust, high-integrity connection into large bore piping systems, simplifying installation and maintenance.

✅Corrosion-Resistant Stainless Steel: Body material (SS304/SS316) ensures outstanding longevity and media compatibility when handling weak corrosive liquids, pure water, or steam.

✅Direct-Acting Zero Pressure Start: Maintains the core benefit of the 2W series, allowing reliable on/off control from 0 bar (0 psi) pressure differential, essential in many large-scale low-pressure transfer applications.

✅High Flow Capacity: The flanged design often corresponds to a larger orifice size, offering a higher CV (Flow Coefficient) value suitable for increased fluid throughput in mainline applications.

✅Enhanced Sealing Reliability: The metal-to-metal contact of the flange, paired with industrial-grade gaskets, provides a secure seal that is highly stable under thermal cycling and mechanical stress.
